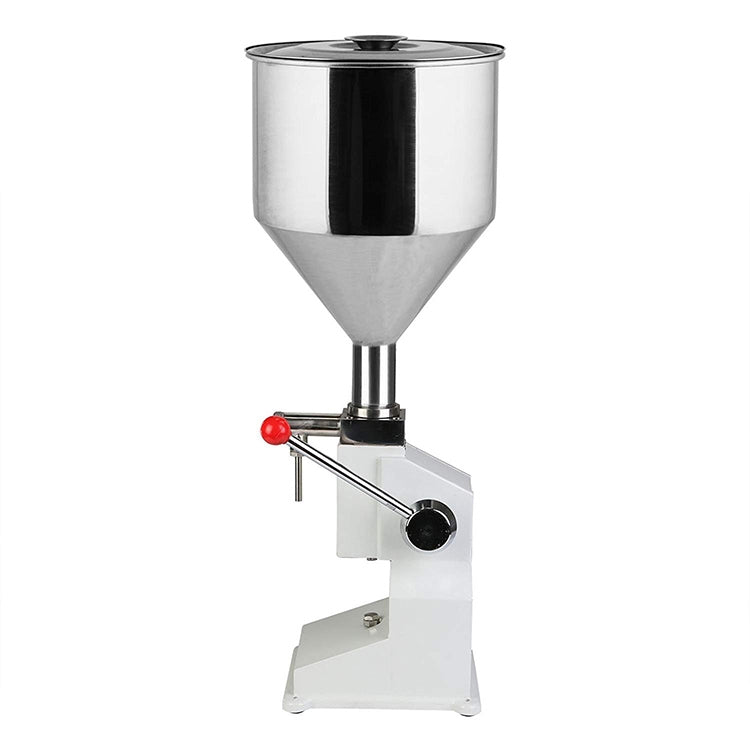

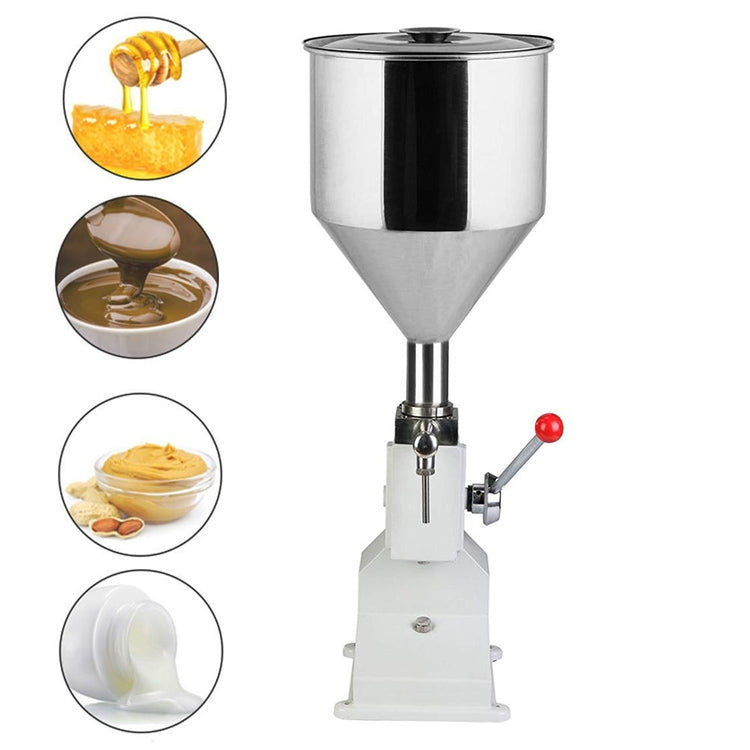

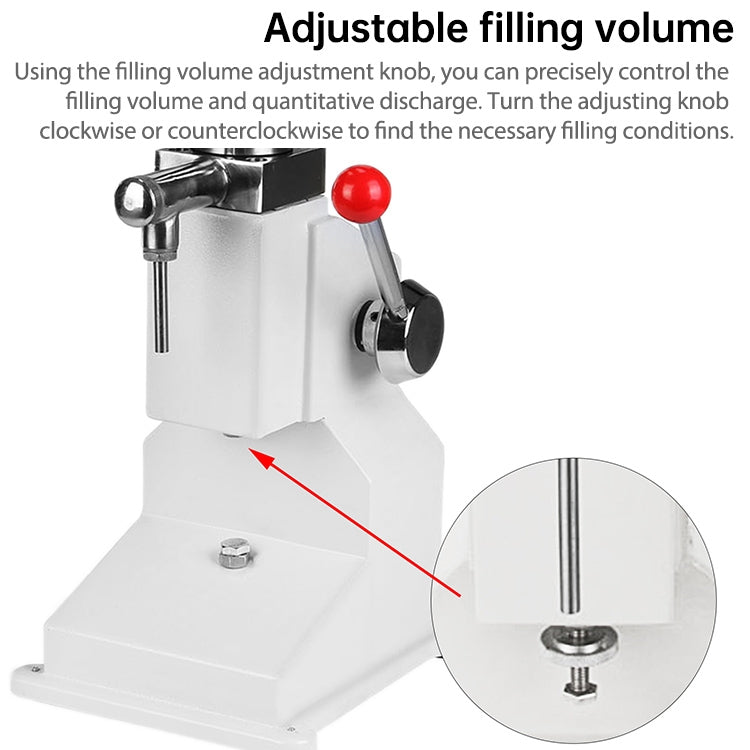

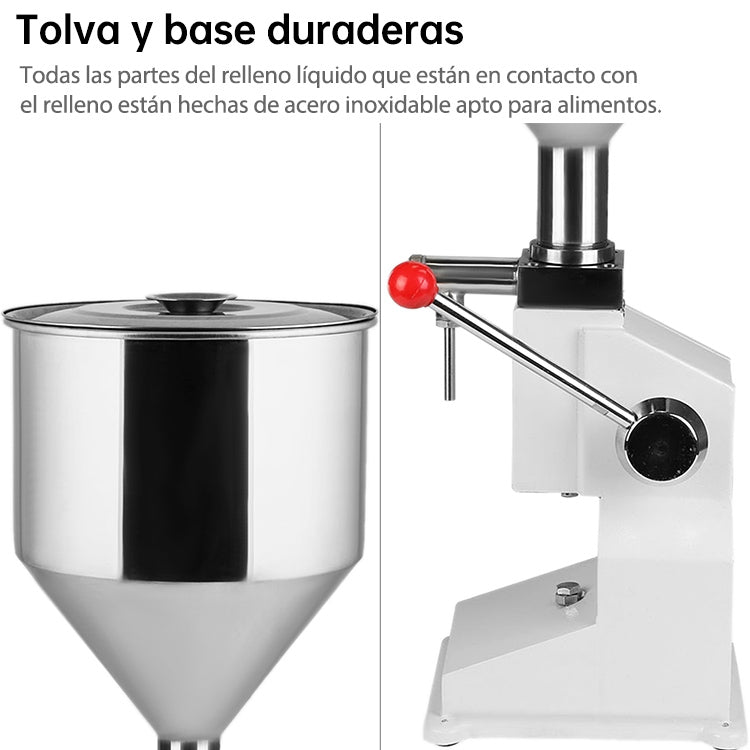

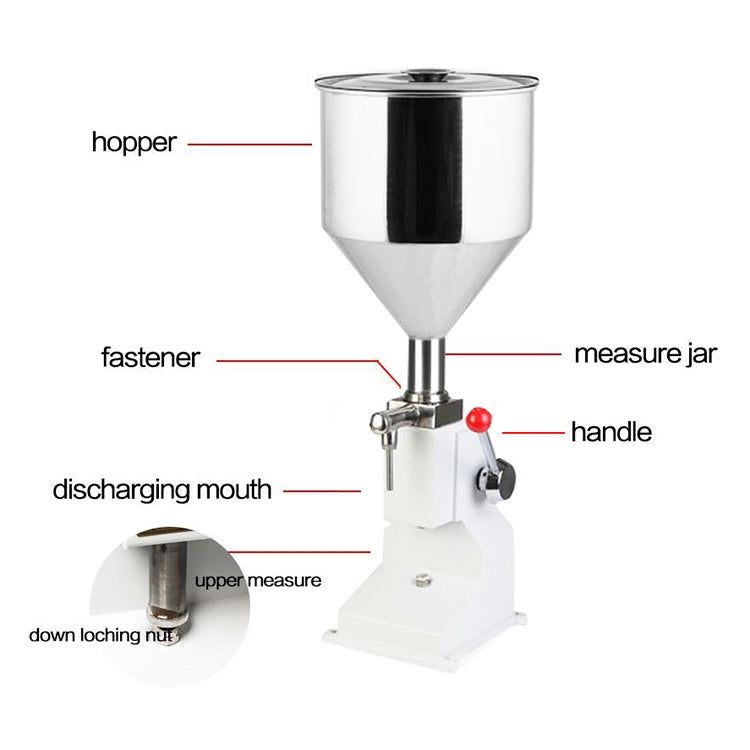

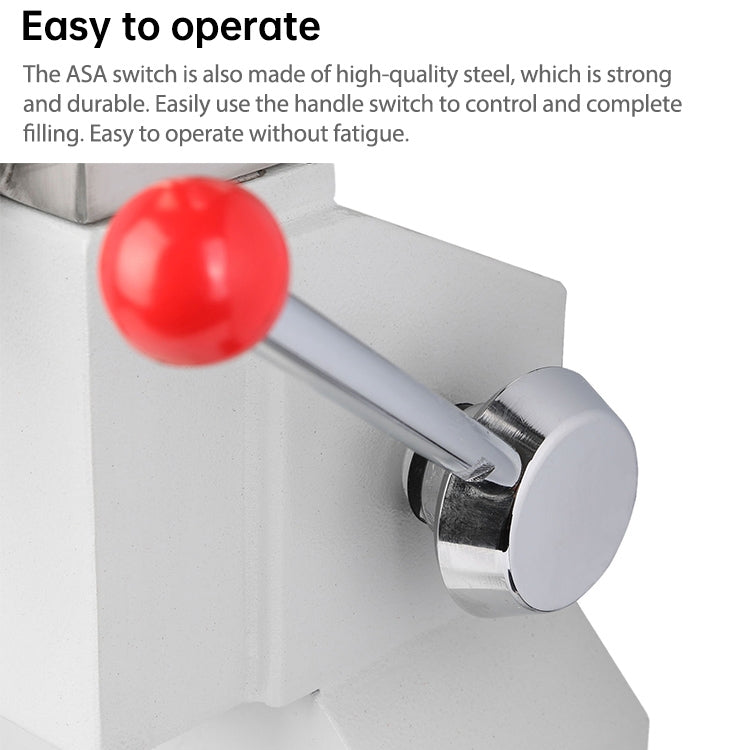

Model Number:A03 Filling method :Hand pressure type Nozzle size:6mm and 8mm Features 1. A03 manual filling machine adopts piston type structure, which can carry out 5-50ml quantitative filling of liquid, paste and other materials. The machine is compact in structure, convenient in operation and accurate in measurement. The material barrel and piston cylinder are both 304 stainless steel structure. It has the characteristics of wear resistance and corrosion resistance, and is especially suitable for small-dose filling work in small and medium-sized enterprises or hospital preparation rooms, laboratories and other units in the daily chemical industry. 2. It can be filled with paste or filled with liquid. 3. 5-50ml range can be quantitatively filled 4. One machine with 6mm and 8mm filling nozzles 5. Hand-pressing operation, one hand pressure, one bottle filling, easy to operate 6. Safer without electricity and other auxiliary power
Filling range:5-50ml Measurement accuracy: ± 0.2-1ml Filling speed :20-60 beats / min Depending on the operating speed of people Working pressure :0.4-0.6Mpa Small air compressor can Hopper capacity :10 L Dimensions:Length × width × height: 330 × 330 × 790 (mm) Weight：12kg
