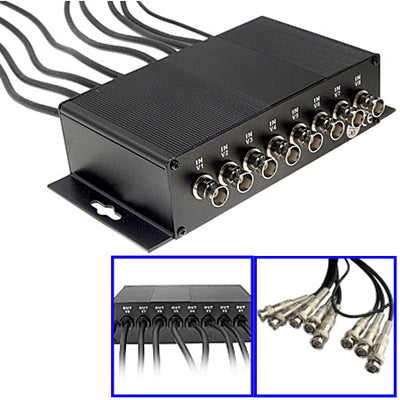

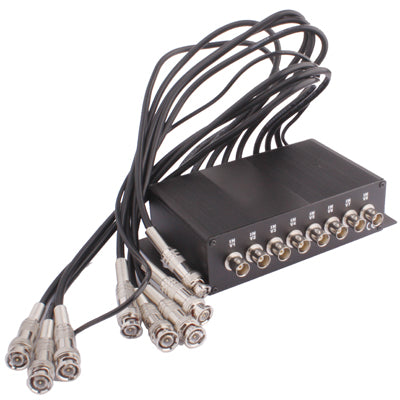

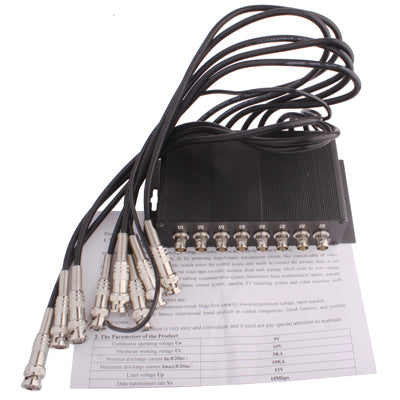

8 Channel CCTV BNC Surge Arrester Surge Protector Device (CoaxJK/ V8)(Black)
8 Channel CCTV BNC Surge Arrester Surge Protector Device (CoaxJK/ V8)(Black)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

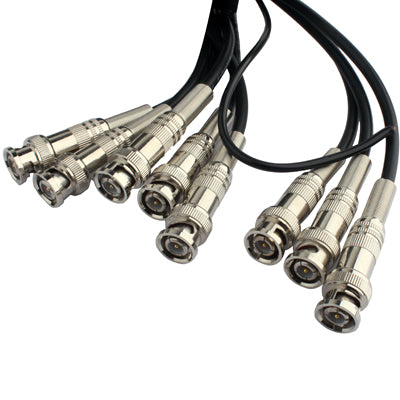

2. CCTV Lightning Arrester adopt internal standard BNC interface(male to female).
3. Suitable for coaxial communication equipment surge protection, such as cable TV, aatellite TV receive, minitor system, etc.
4. This 8CH Surge Protector can protect the lighting response of coaxial cable or equipment damage caused by other high surge voltage.
5. CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge.
Specifications:
1. Working Voltage: 5V
2. Max Working Voltage: 10V
3. Nominal Discharge Current(8/20us): 5KA
4. Discharge Current(8/20us): 10KA
5. Voltage Limit: 15V
6. Data Transfer Rate: 100Mbps
7. Insertion Loss: 0.2db
8. Response Time: 1nS
9. Interface Type: BNC
10. Protection Method: Line to line, line to ground
11. Working Temperature: -25-/+65 degree C
12. Humidity: ~95% 25-30 degree C
13. Test Standard: IEC61643-21: 2000
14. Cable length: Approx. 400mm
15. Size: Approx.168x80x40mm
