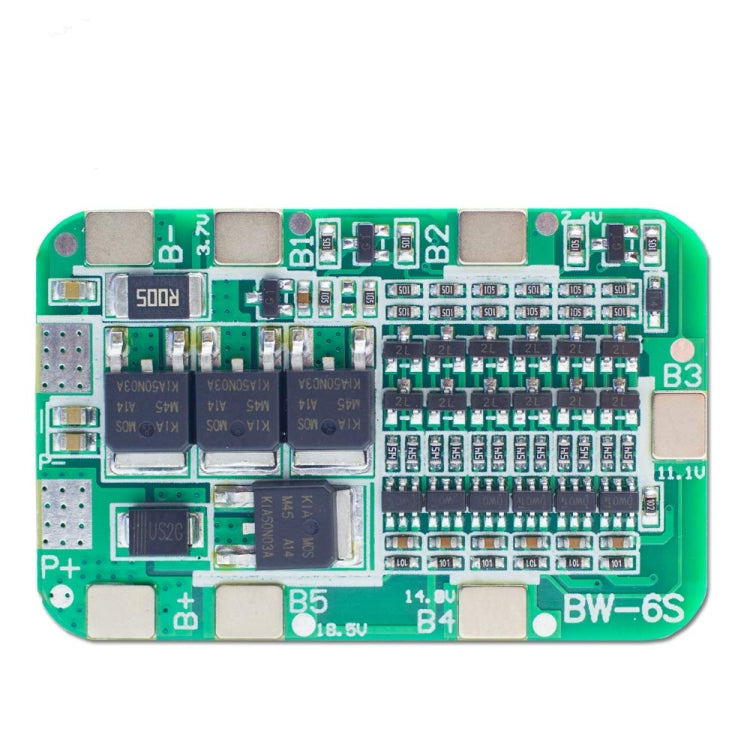

6 String 22/24V 18650 Lithium Battery Protection Board
6 String 22/24V 18650 Lithium Battery Protection Board
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. Integrated circuit boards for rechargeable (generally lithium batteries) protection
2. Discharge: large discharge current: 15A; instantaneous discharge current: 25A
3. Charging: voltage: 25.5V; current: 15A
4. Overcharge protection: detection voltage: about 4.28V; delay time: 0.1S; release voltage: about 4.08V
5. Over-discharge protection: detection voltage: 2.55V; detection delay: 0.1S; release voltage: about 2.9V
6. Over-current protection: detection voltage: 150mV; detection delay: 9MS; current: about 30A; release condition: disconnect the load
7. Short-circuit protection: protection condition: external load short-circuit; detection delay: 250uS; release condition: disconnect the negative open
8. Internal resistance: the internal resistance of the main circuit is less than or equal to 20 mOhm
9. Self-consumption: working current: less than or equal to 30uA; sleep current (when the battery is over-discharged): less than or equal to 10uA
10. Operating temperature range: -30/+80 degrees Celsius
11. Size: about 50 x 32 x 3mm
12. Weight: about 8g
