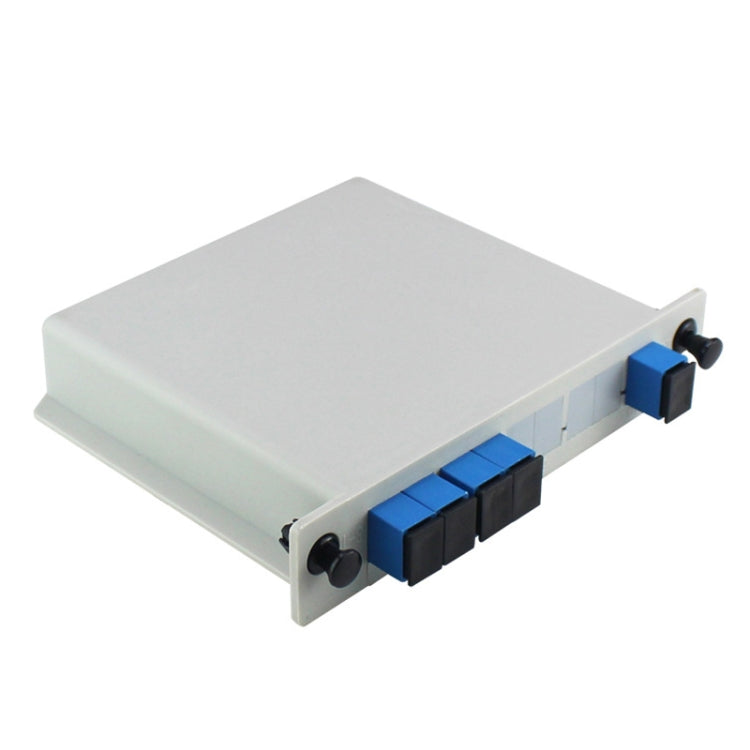

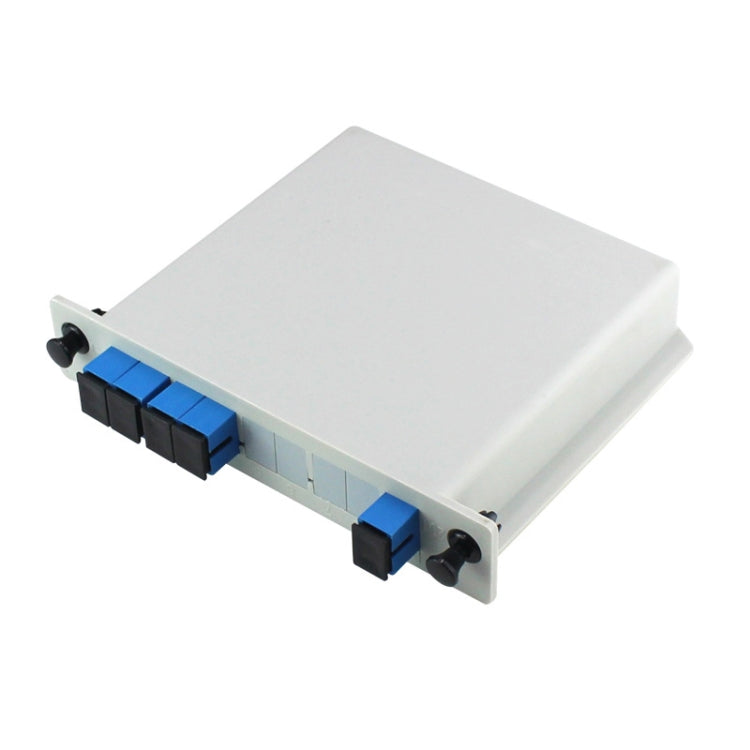

4 In 1 Plug-in PLC Optical Splitter SC Port Carrier-grade Fiber Optic Splitter
4 In 1 Plug-in PLC Optical Splitter SC Port Carrier-grade Fiber Optic Splitter
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

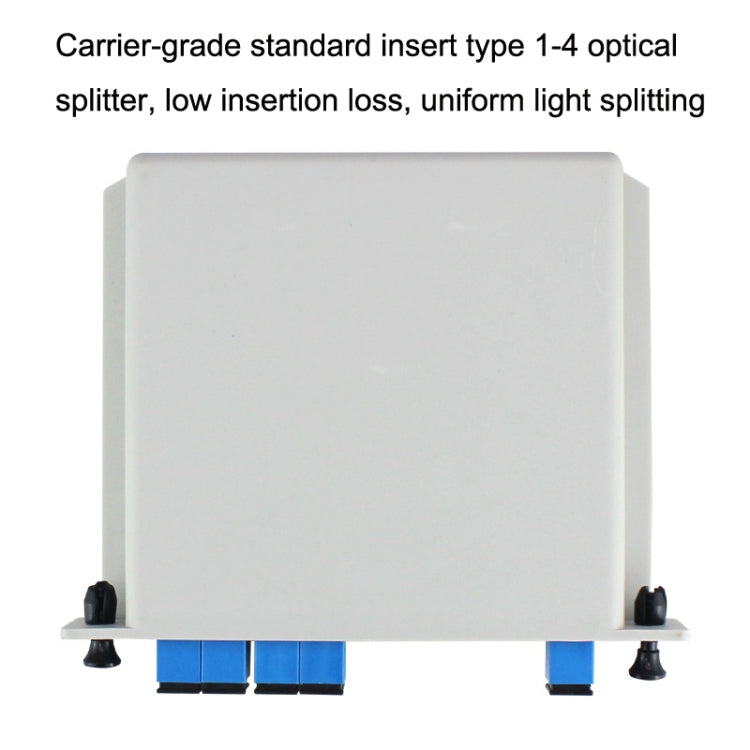

1. Carrier-grade standard insert type 1-4 optical splitter, low insertion loss, uniform light splitting
2. Low insertion loss, high return loss, good interchangeability, good repeatability, good temperature stability

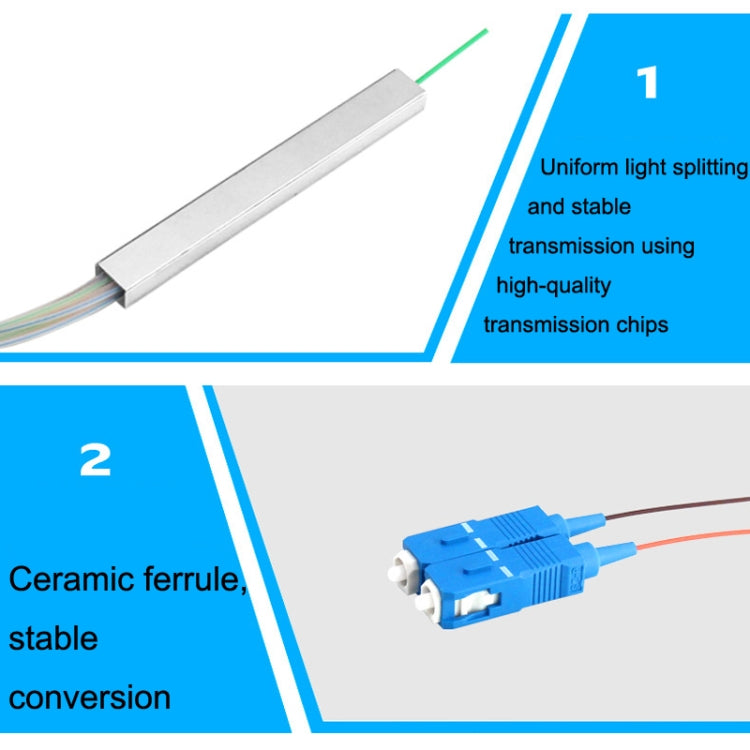

3. Uniform light splitting and stable transmission using high-quality transmission chips
4. Ceramic ferrule, stable conversion

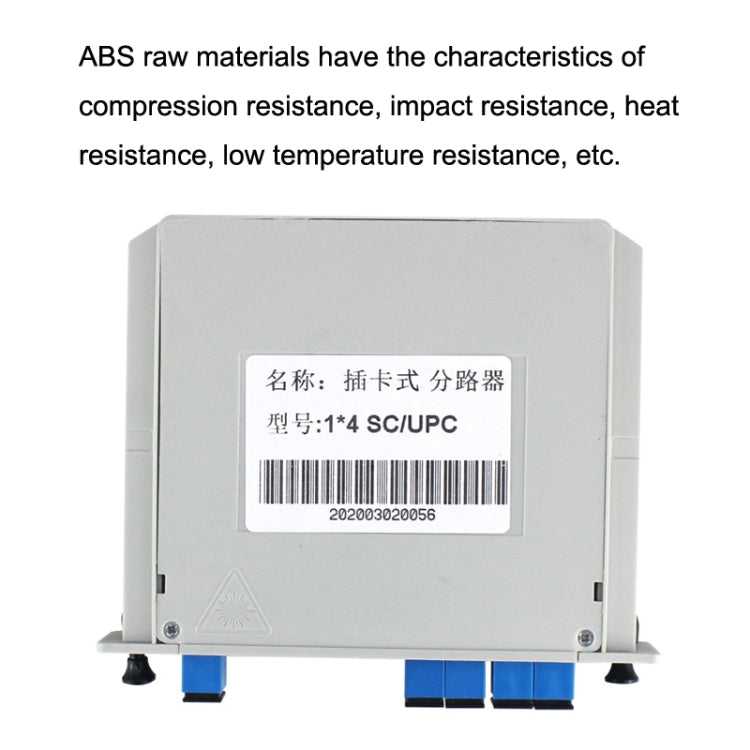

5. ABS raw materials have the characteristics of compression resistance, impact resistance, heat resistance, low temperature resistance, etc.

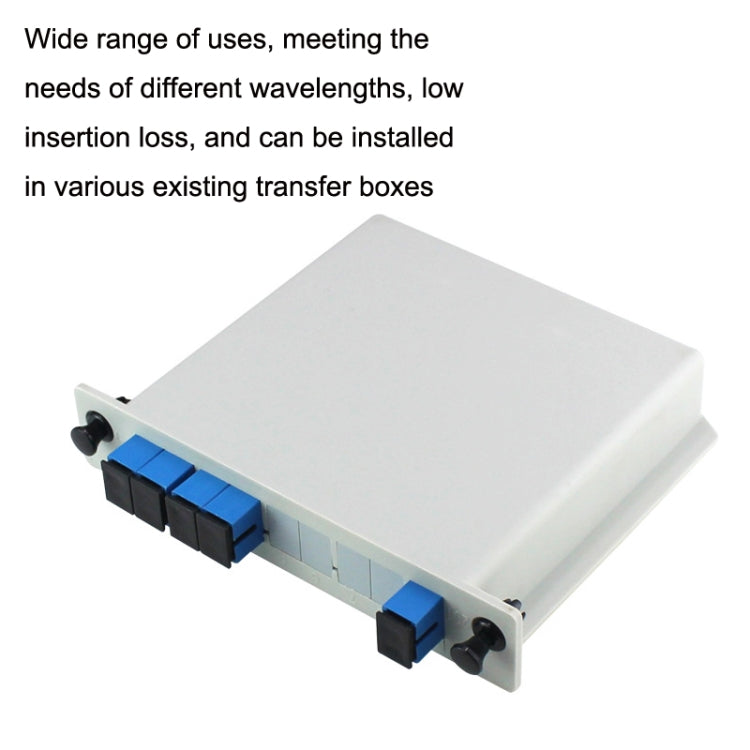

6. Wide range of uses, meeting the needs of different wavelengths, low insertion loss, and can be installed in various existing transfer boxes
7. Insertion times: 300 times
8. Insertion loss: 7.2dB
9. Working temperature: -40 to 85 degrees Celsius
10. Test wavelength: 1310nm
11. Working wavelength: 1260nm-1650nm
12. Number of interfaces: 5
13. Interface model: SC/UPC
14. Spectral uniformity: 0.8dB
15. Directivity: 55dB
16. Temperature stability: 0.6dB
17. Polarization dependent loss: 0.3dB
18. Wavelength dependent loss: 1.0dB
19. Return loss: 55dB
20. Dimensions: 130 x 112 x 26mm
