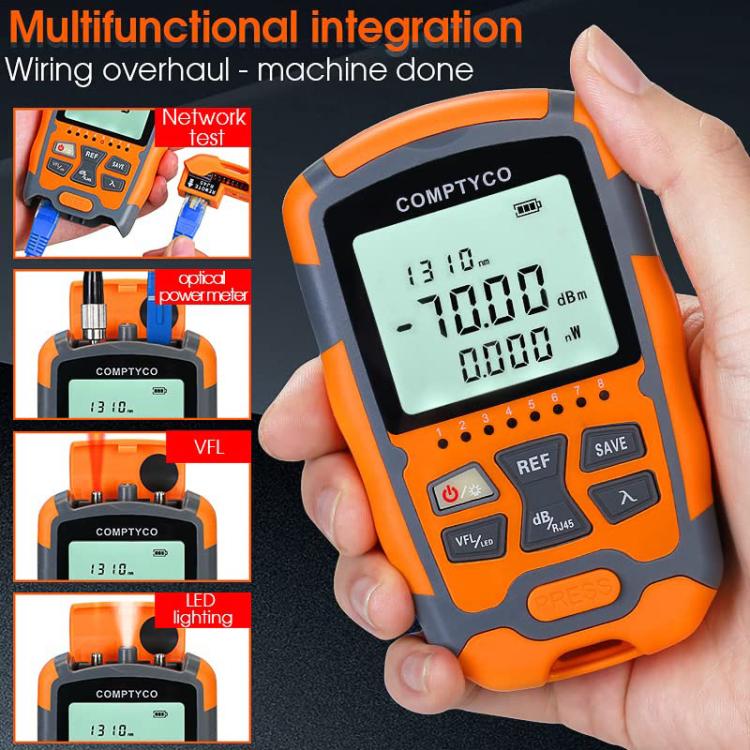

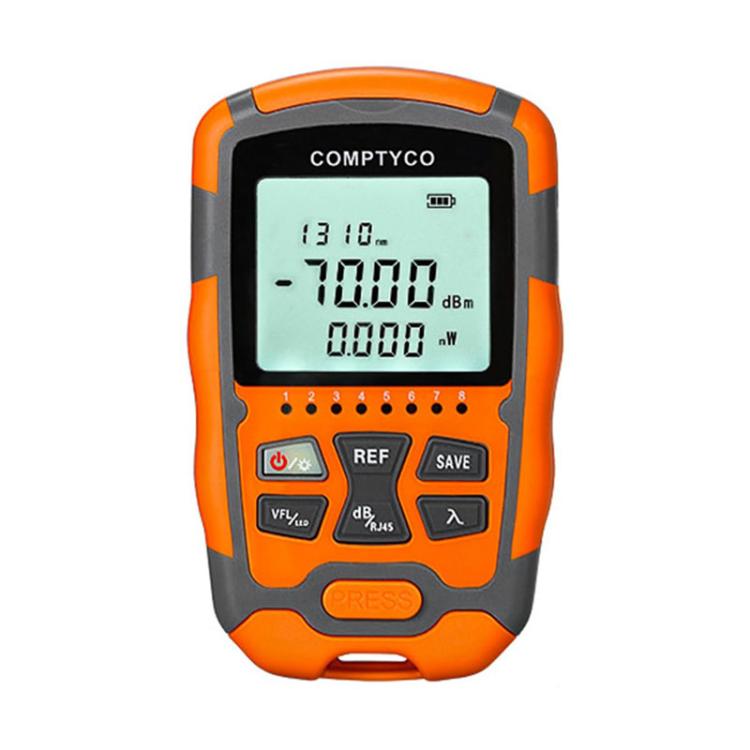

4 In 1 Mini Optical Power Meter Red Light Integrated Machine Portable Power Test Equipment, Model: M70 10mw
4 In 1 Mini Optical Power Meter Red Light Integrated Machine Portable Power Test Equipment, Model: M70 10mw
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

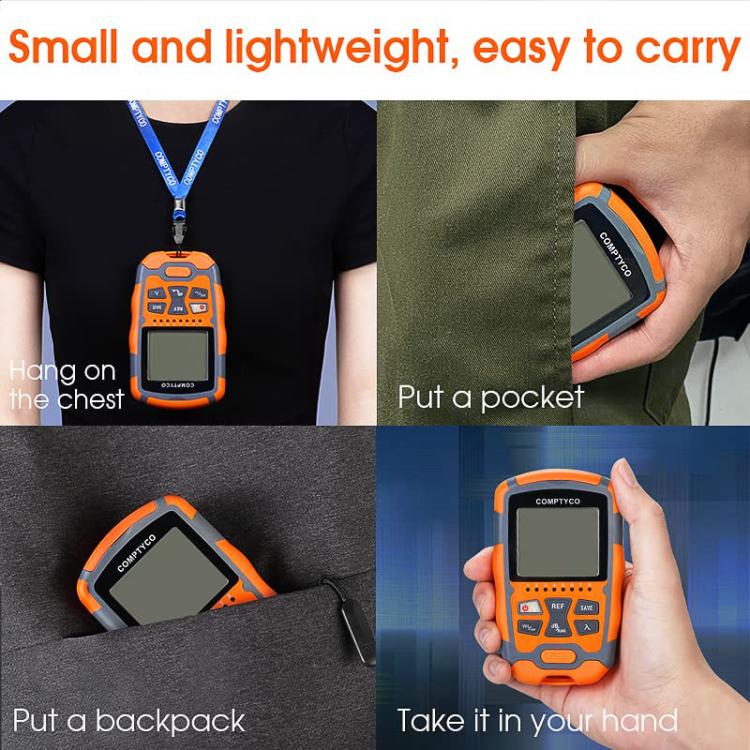

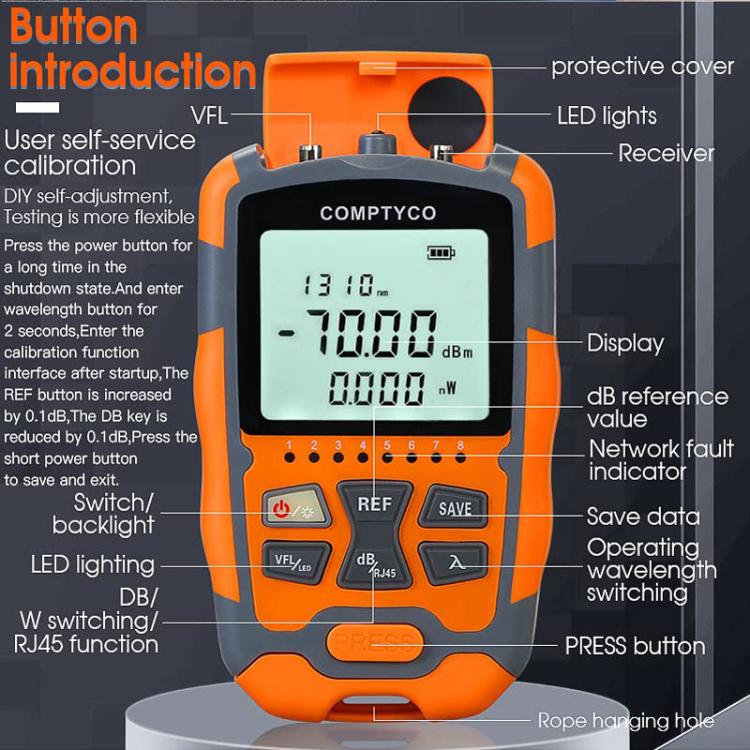

1. The size is small and lightweight, easy to carry
2. In standby mode, 10 minutes intelligent shutdown, saving electricity

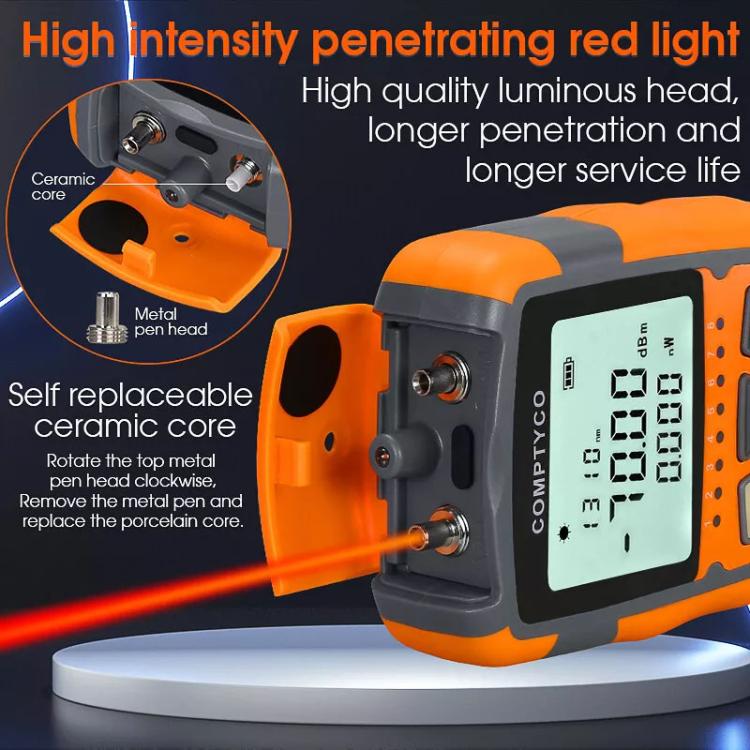

3. High intensity penetrating red light, penetrate farther, longer service life

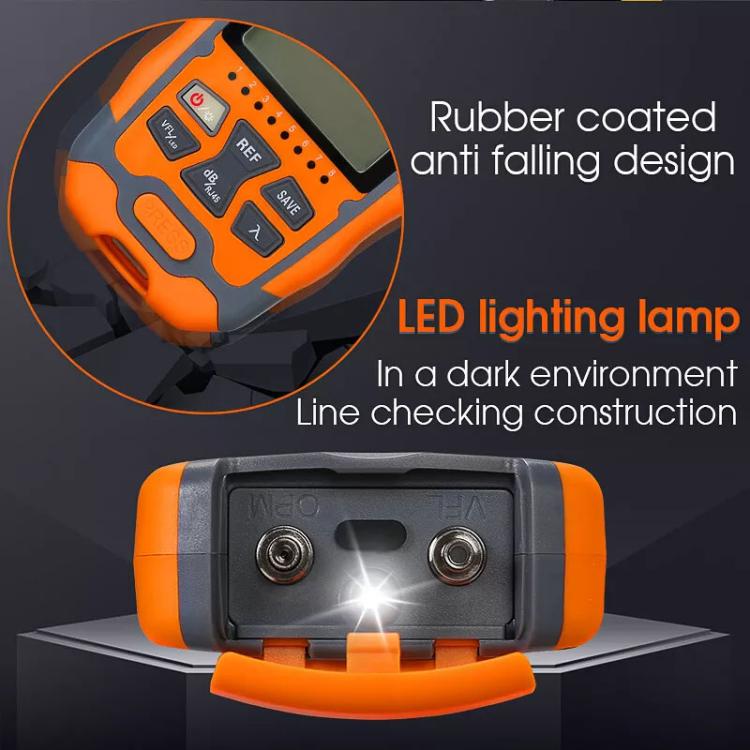

4. LED lighting, easy to check the line construction in dark environment
5. Rubberized drop-proof design, sturdy and durable

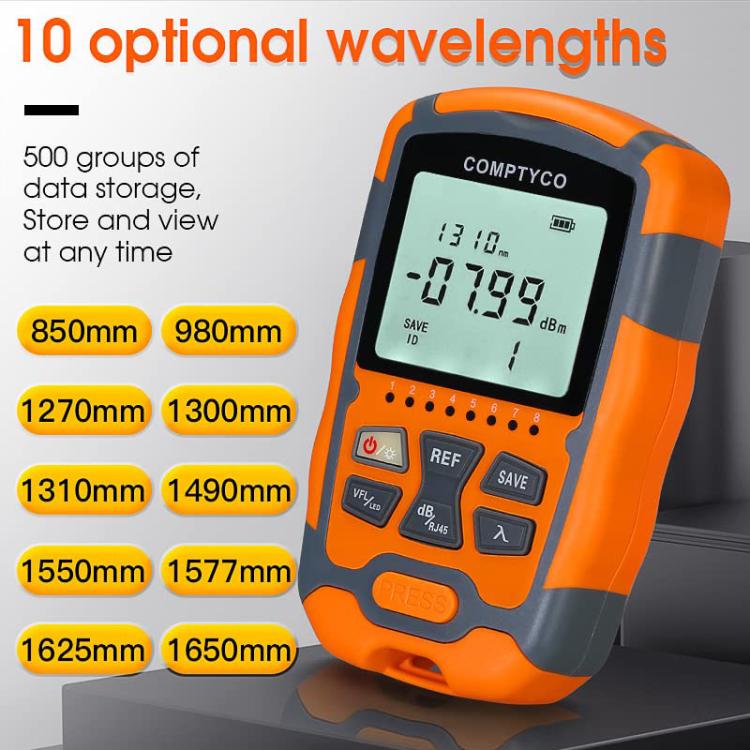

6. 10 wavelengths, 500 sets of data storage, at any time to store, at any time to view
Parameters:

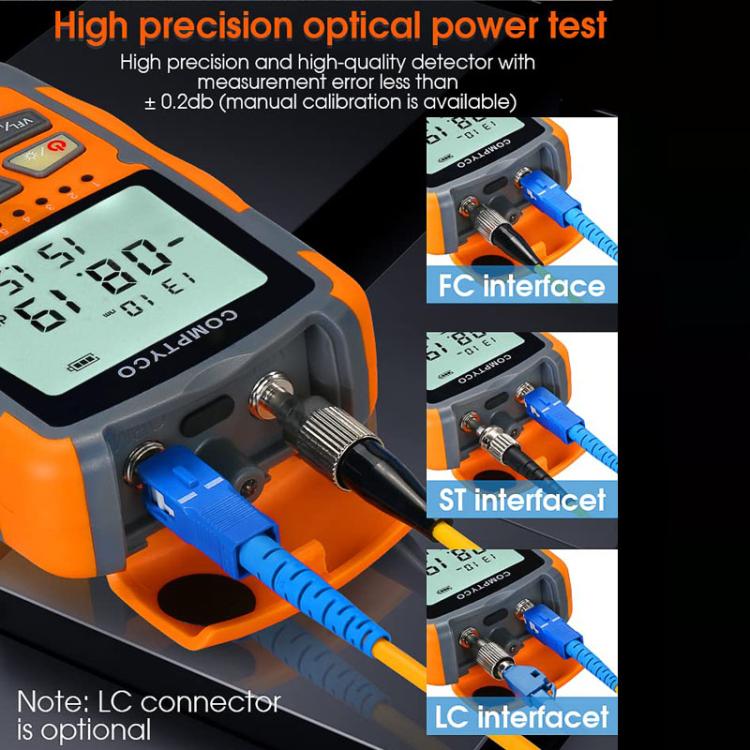

1. Power measurement range: -70-+10dbm/-50-+26dbm
2. Probe type: InGaAs
3. Wavelength range: 800-1700nm
4. Standard wavelength (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650
5. Display resolution: linear display: 0.1 percent; logarithmic display: 0.01dBm
6. Operating temperature: -10-60 degrees celsius
7. Storage temperature: -25-70 degrees celsius
8. Automatic shutdown time (min): 10 minutes
9. Red light source output power: greater than 1mW / greater than 10mW / greater than 20mW / greater than 30mW / greater than 50mW
10. Red light output wavelength: 650nm
11. Power supply: 2 x AAA batteries (delivery does not include)

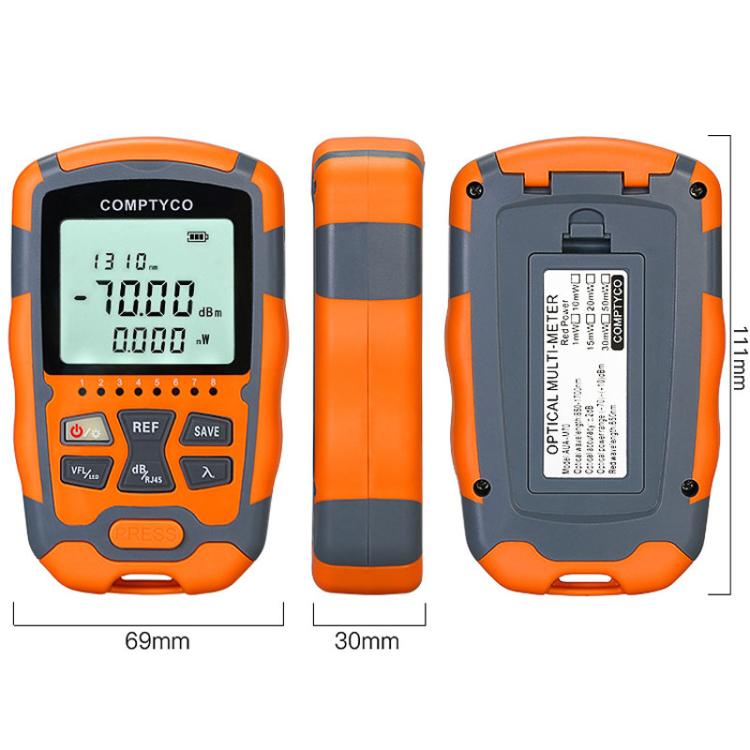

12. Overall dimensions: 111 x 69 x 30mm
