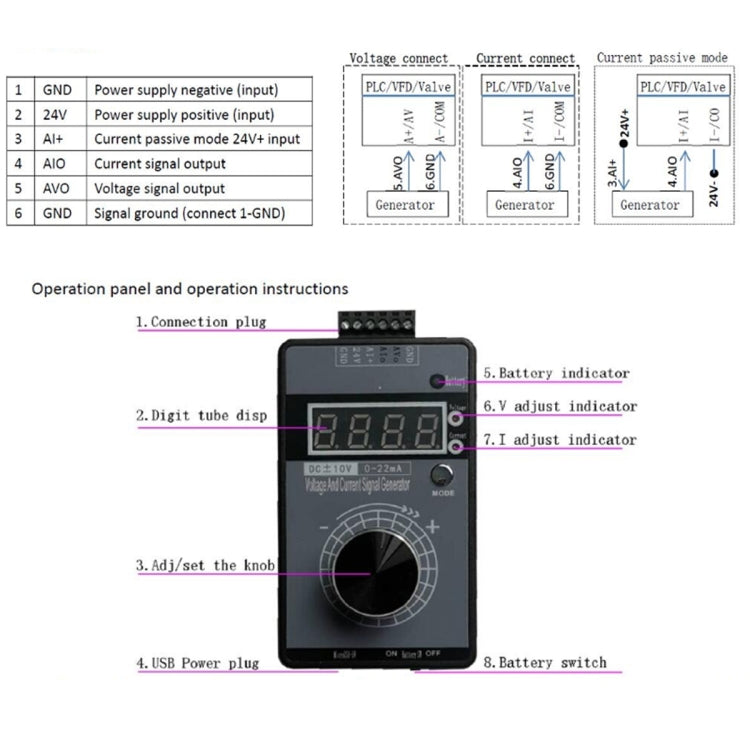

1. Output range: 0-20mA, 4-20mA, 0-22mA, 0-1V, 0-5V, 0-10V, 0-2.5V, 0-3.3V, -5V to 5V, 1-5V, 2- 10V, etc. can be switched and adjustable. 2. Display mode: actual current/voltage signal value display, 0.0-100%, 0.0-50.0(Hz), switchable. 3. The user can set 9 fast signal output points, which is more convenient for debugging. 4. Support 24V working power for terminal blocks and 5V working power for USB ports, which can be used in indoor or outdoor industrial sites 5. The output accuracy can be calibrated by the user, the output accuracy is 0.01V, 0.01mA, and the LED display output signal value is accurate. 6. The adjustment steps can be fine-tuned or coarse-tuned, and can be switched. 7. The signal generator has short circuit protection circuit and reverse polarity protection circuit. 8. The default output range is 0-10V, 0-20mA, and the user can adjust it to output -10V to -10V, 4-20mA and other output ranges. 9. Battery: 800mAh
