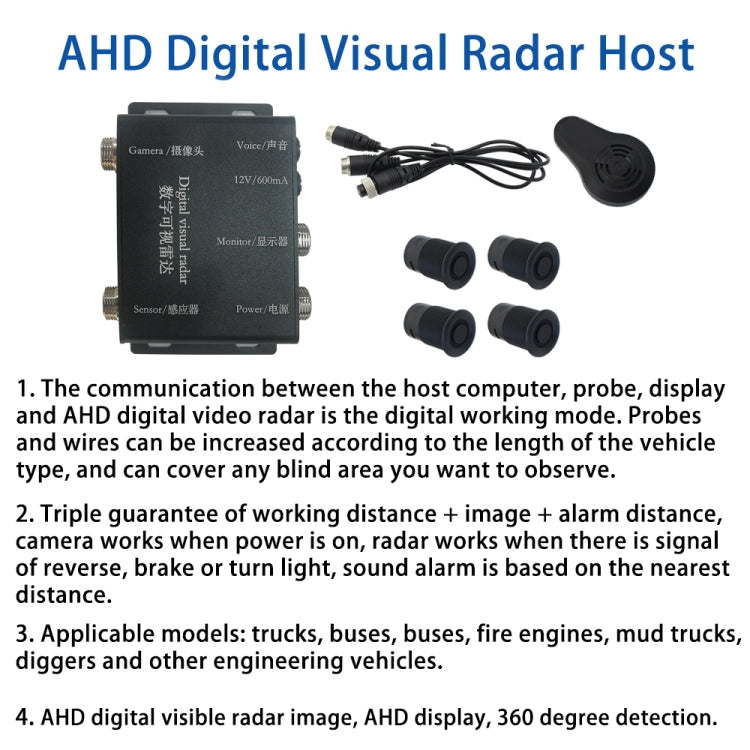

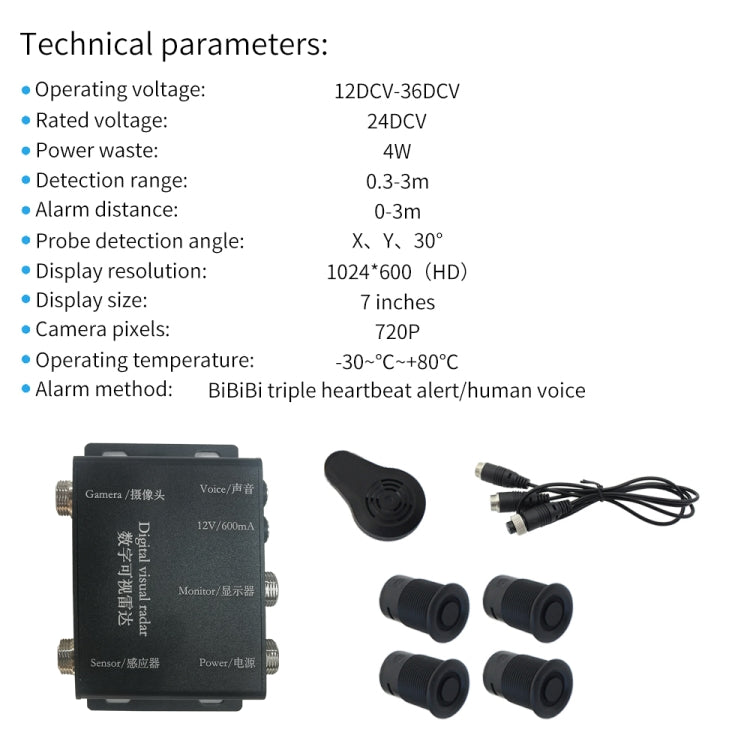

1. Rated voltage: 24DCV 2. Working voltage: 12DCV-36DCV 3. Power consumption: 4W 4. Detection distance: 0.3m~3.0m 5. Alarm distance: 0m~3.0m 6. Sensor angle: X/Y/30 degrees 7. Number of sensors: 128 8. Display resolution: 1024x600 (HD) 9. Camera pixel: 720P 10. Display screen size: 7 inches 11. Error: -5mm, +2mm 12. Sensor connector: Aviation connector 13. Working temperature: -30~+80 14. Alarm type: Buzzer beeping 15. Alarm volume: 65dB 16. Sensor size: 26mm 17. The communication between the host, probe, display and AHD digital video radar is a digital working mode. Probes and wires can be added according to the length of the vehicle model to cover any blind spot you want to observe 18. Triple protection of working distance + image + alarm distance, working as soon as the power is turned on, the radar works when there are reverse, brake and turn signal signals, and the sound alarm is based on the closest distance 19. Applicable models: trucks, buses, public buses, fire trucks, mud trucks, excavators and other engineering vehicles 20. AHD digital visual radar image, AHD display, 360-degree detection

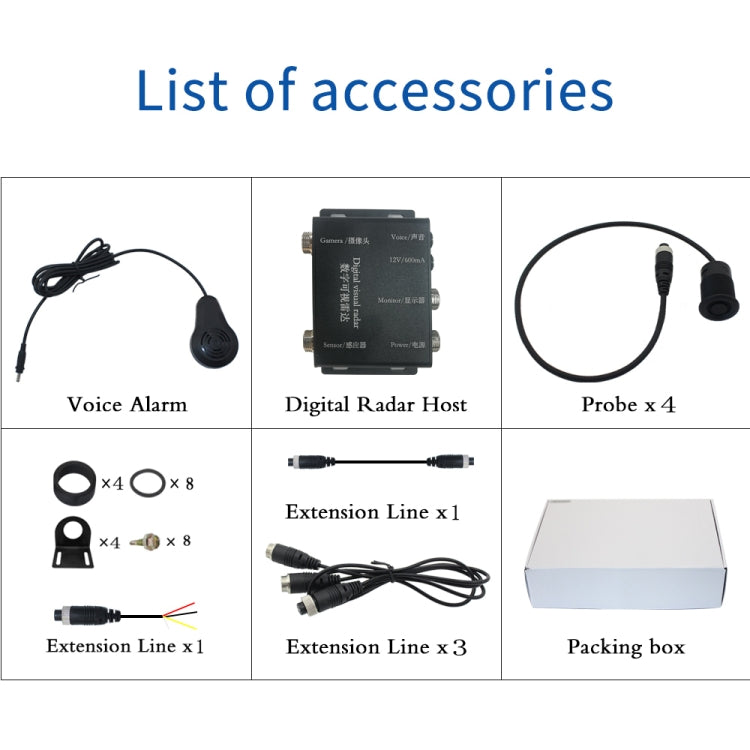

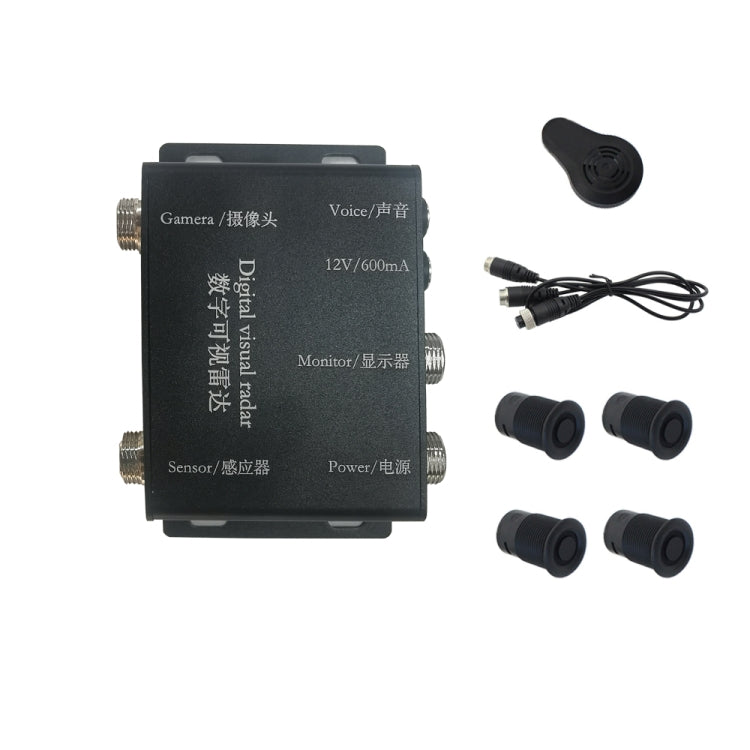

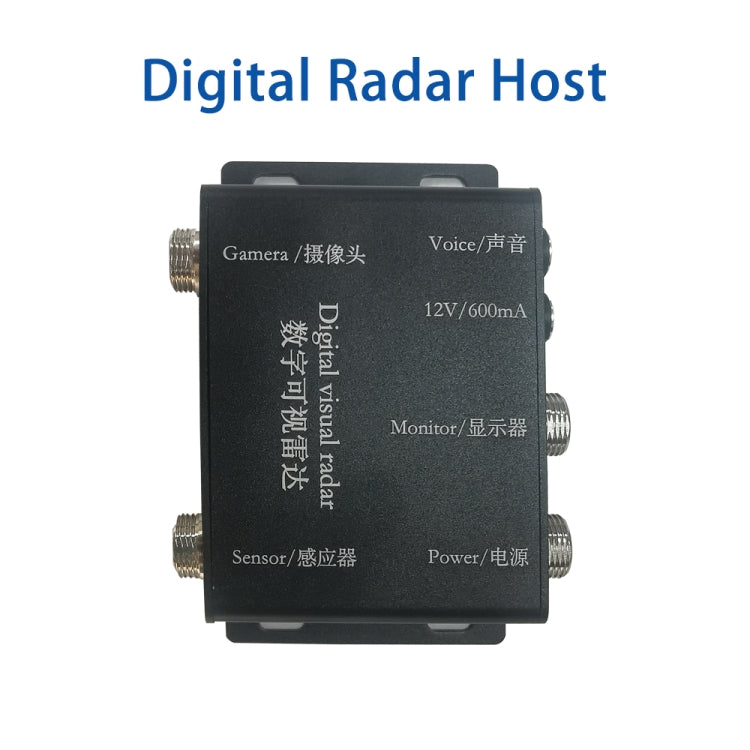

Packing list: - Digital radar host x 1 - Digital probe x 4 - Buzzer x 1
