Specifications 1. Operating voltage: 8.0 ~ 120.0 VDC, typical value 60 VDC 2. Working power consumption: 3.0~ 5.0 mA, normal value 4.0 5.0 3. Sleep power consumption: 100~ 350 uA, normal value 300 uA 4. Battery Resolution: 0.1 % 5. Voltage resolution: 0.1 V 6. Current resolution: 0.1 Ah 7. Capacity Resolution: 0.1 A 8. Voltage accuracy: +/-0.5 % 9. Current accuracy; +/-00.5 % 10. Capacity accuracy: +/-01% % 11. Battery capacity setting: 0.1 999Ah 12. Auto sleep current value: 30~ 50 mA, normal value 40 mA 13. Auto-on current value: 30~ 80 mA, normal value 50 mA 14. Meter size; 61.3 x 33.3x 13.5 mm 15. Hole size: 58.5 x 28.5 mm 16. Operating temperature: -10~50 degree C

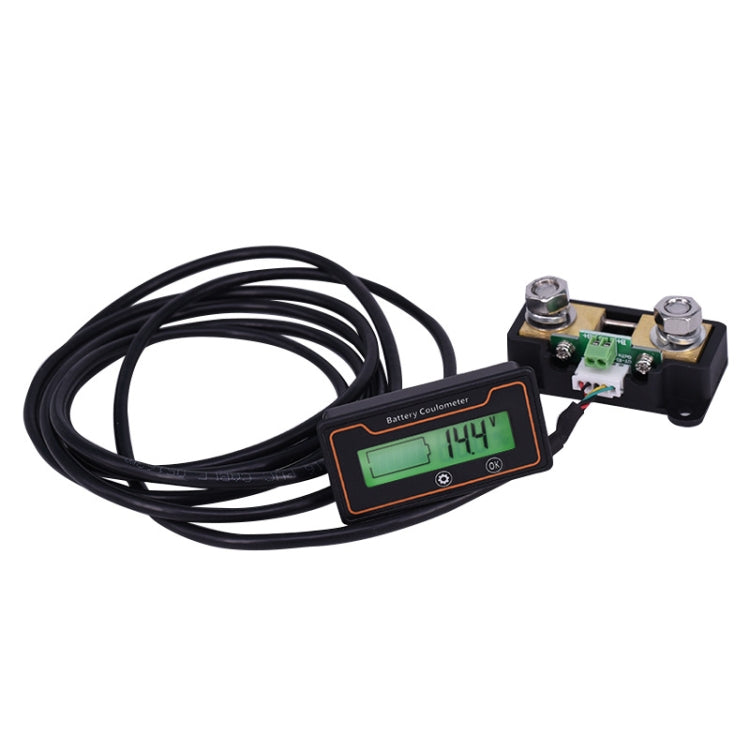

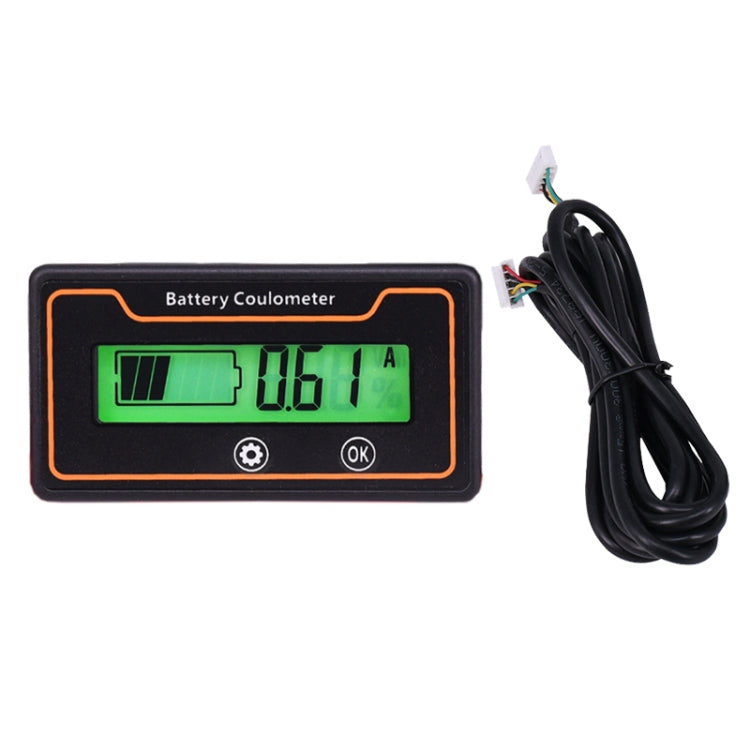

Features 1. GY-K1S is a high-precision battery power display meter, which accurately displays the battery power percentage, capacity, current, and voltage by means of current calculation (coulomb counter). 2. The GY-K1S coulomb meter is not limited by the type of battery. It can be used on any battery with a battery voltage of 8-120V. It can accurately grasp the working status of the battery in time; especially for loads with large current fluctuations and intermittent work. The use of high-current loads is very effective, such as various electric vehicles, sweepers, electric forklifts, and equipment with high-power motors. 3. The power is displayed by liquid crystal, which is clearer and more power-saving 4. Applicable to any battery, battery pack or device, such as lead-acid battery, water battery, Lithium batteries, lithium iron phosphate batteries, nickel-cadmium batteries, nickel-hydrogen batteries, etc. 5. Support capacity setting, support reset battery voltage value setting 6. Turn on and off the display manually, and automatically turn on and off the display when the current is detected 7. 10 seconds delay automatic sleep function, can withstand ultra-wide voltage input
