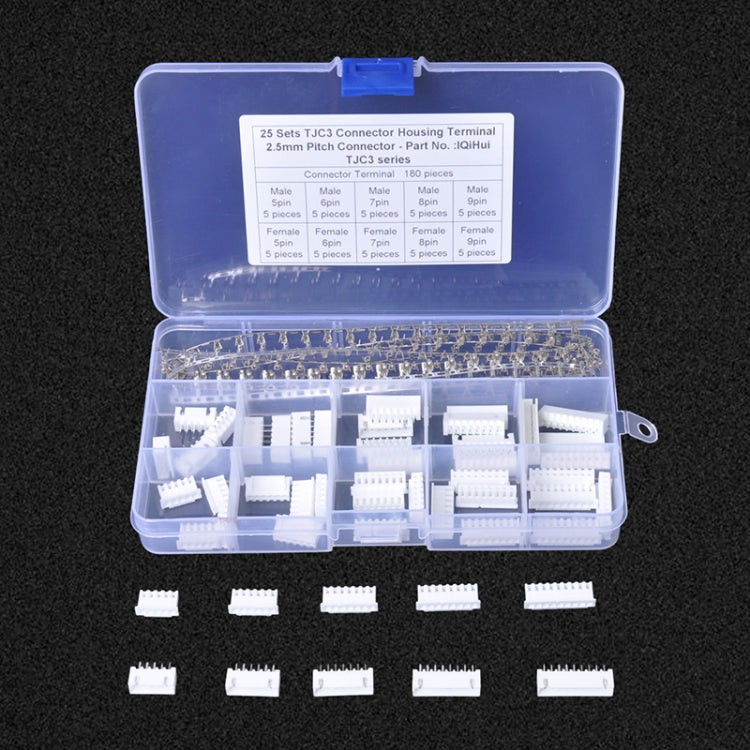

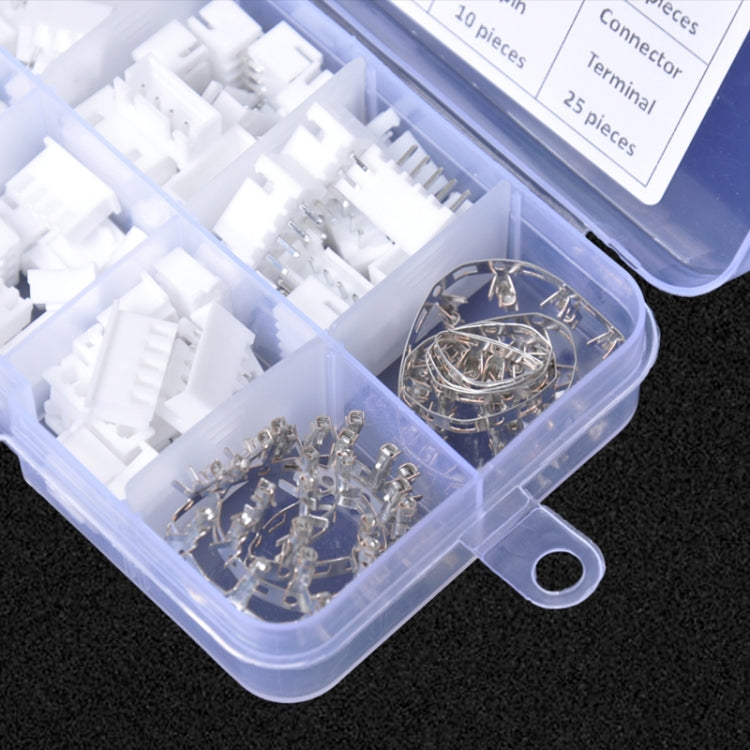

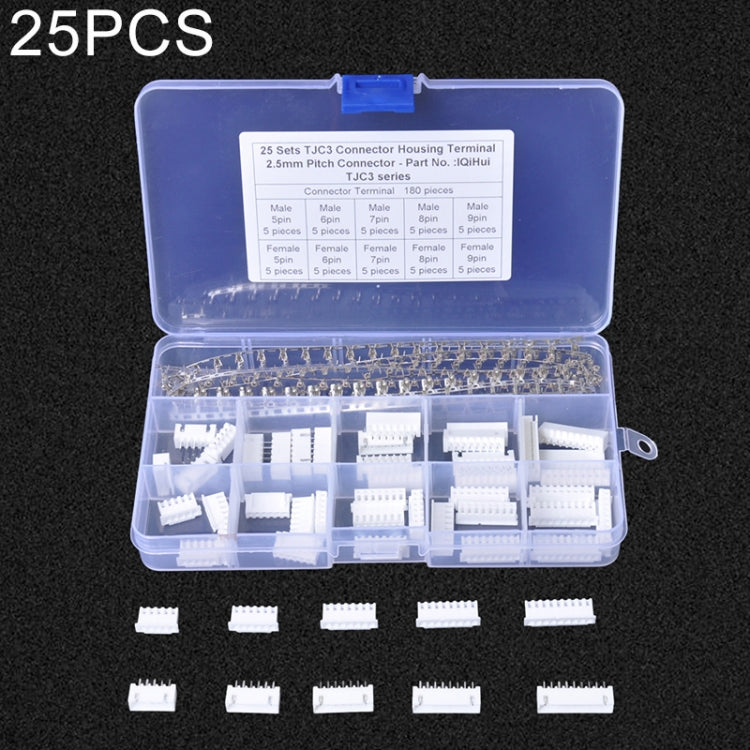

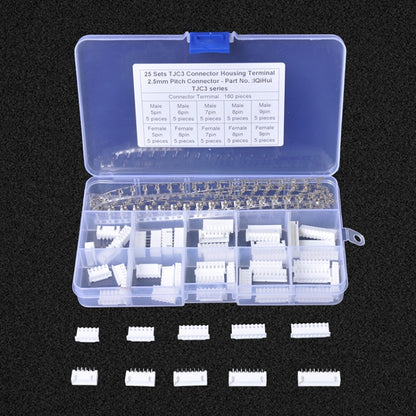

25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps

Name: 25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps
Brand: buy2fix
SKU: CMS6025
Availability: InStock

$17.00

Sale Sold out

Import Duties & Tax Information

In stock

Fast Delivery

30-Day Returns

1-Year Warranty

Trusted by DIY & repair professionals in 40+ countries

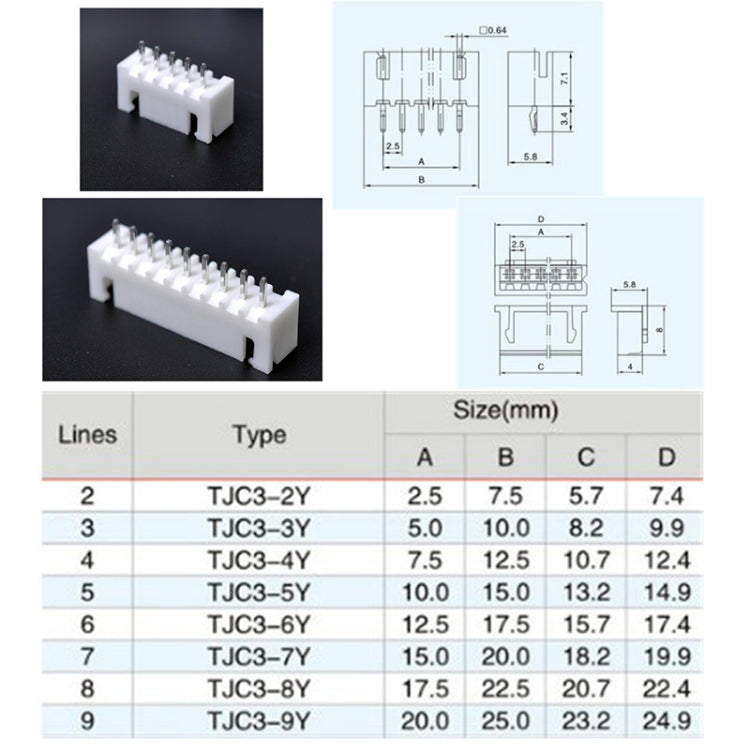

1. Pitch: 2.5mm
2. Rated voltage: 250V AC,DC
3. Rated current: 3A AC,DC
4. Contact resistance: 10M Ohm max
5. Insulation resistance: 1000M Ohm min
6. Withstanding Voltage: 1000V AC/minute
7. Ambient temperature: -25 ~ +85 Celsius degree
8. Wire Range : AWG#28~#22
9. Material:
Housing: Nylon UL94-V0(2)

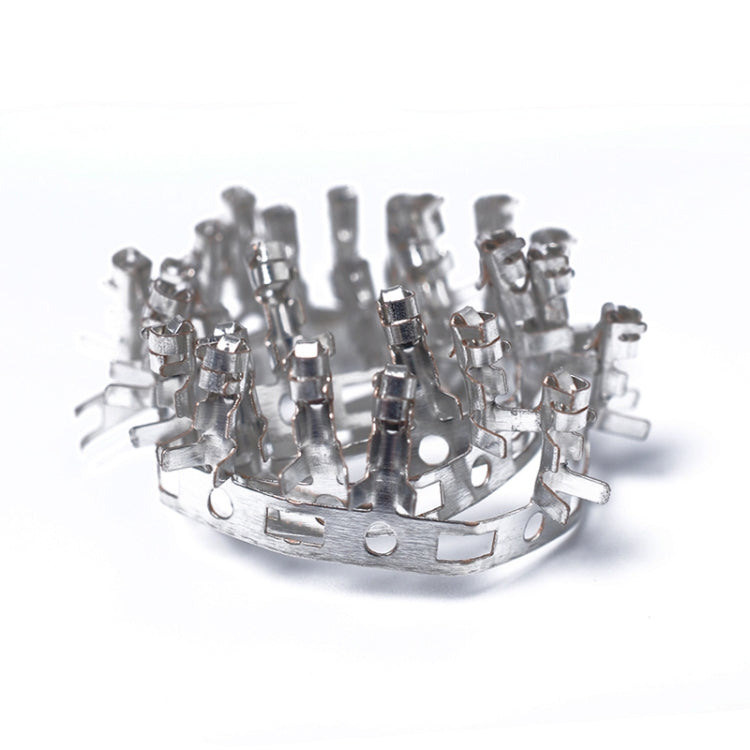

Terminal: Phosphor bronze, Tin plated
Package:
5pin = 5 sets
6pin = 5 sets
7pin = 5 sets
8pin = 5 sets
9pin = 5 sets
Pin Connector Terminal :180 pcs
