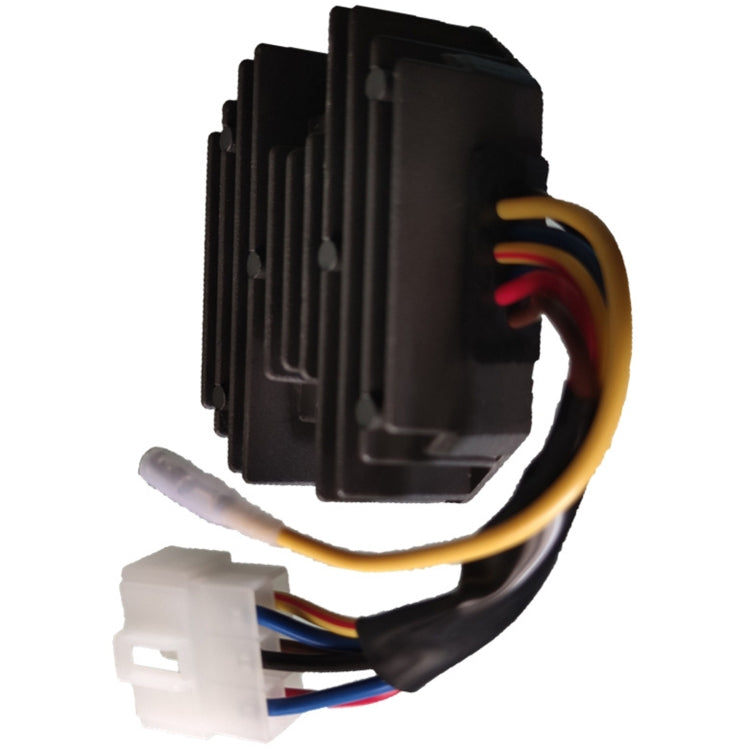

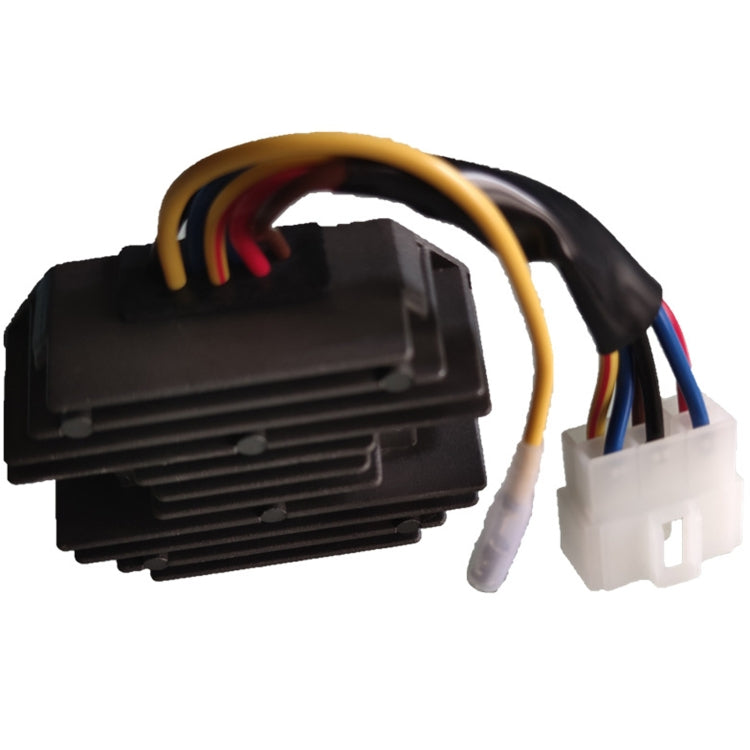

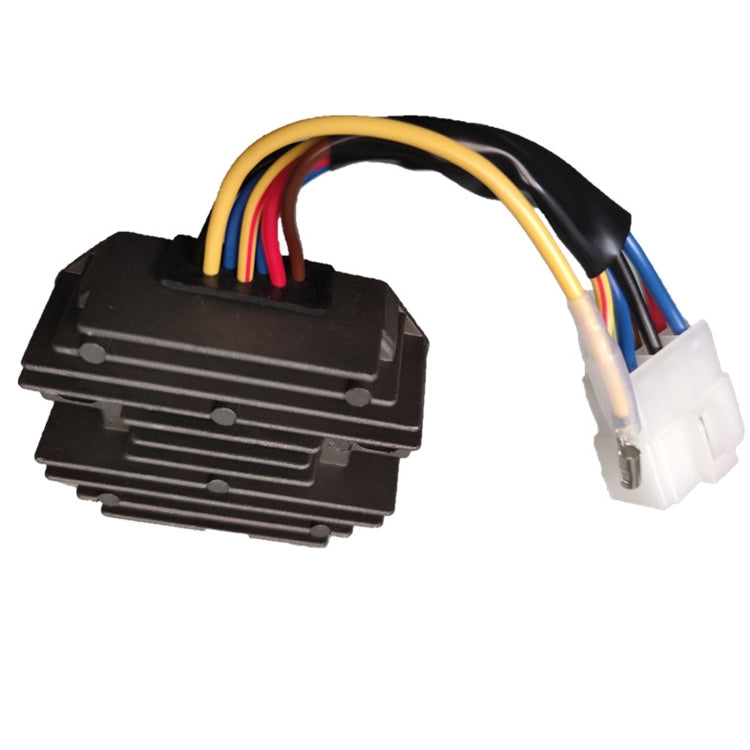

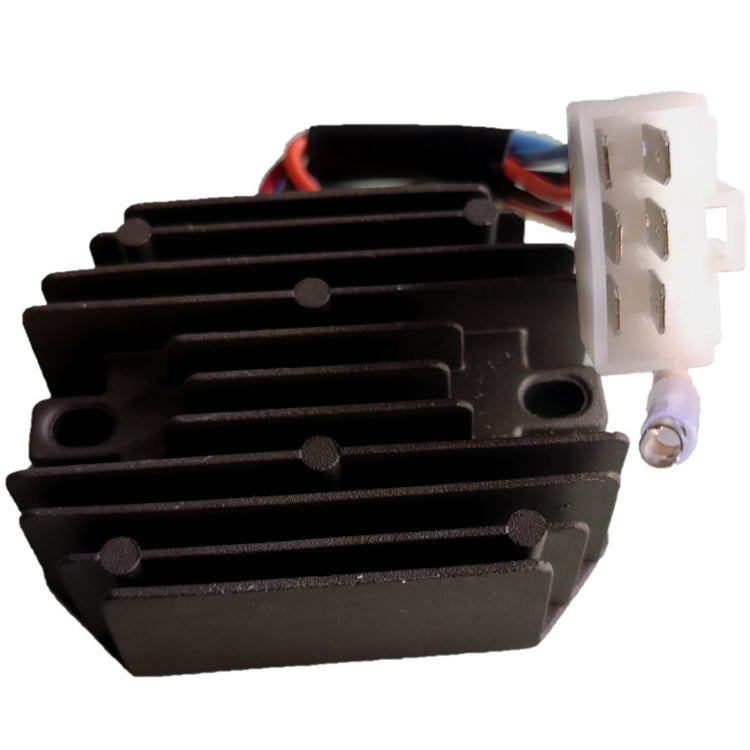

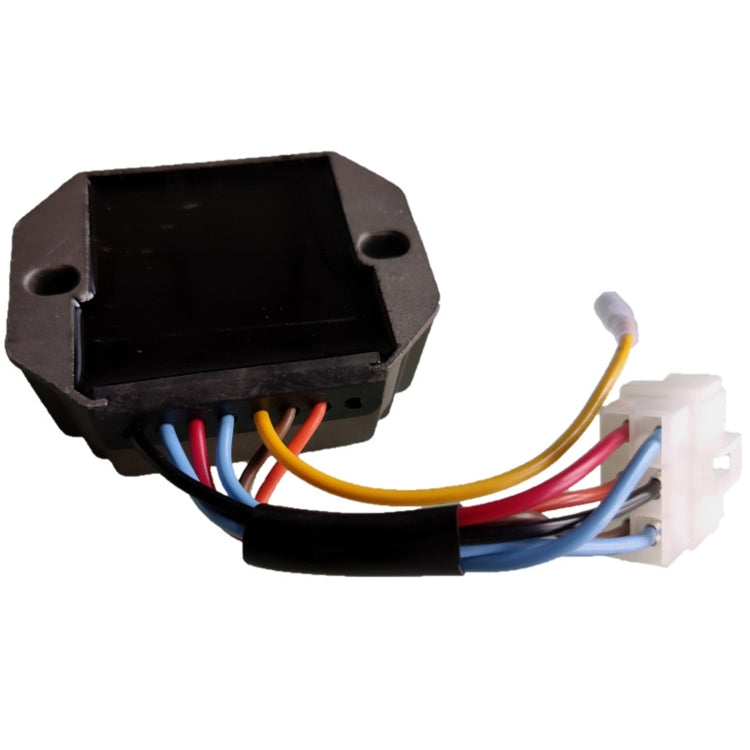

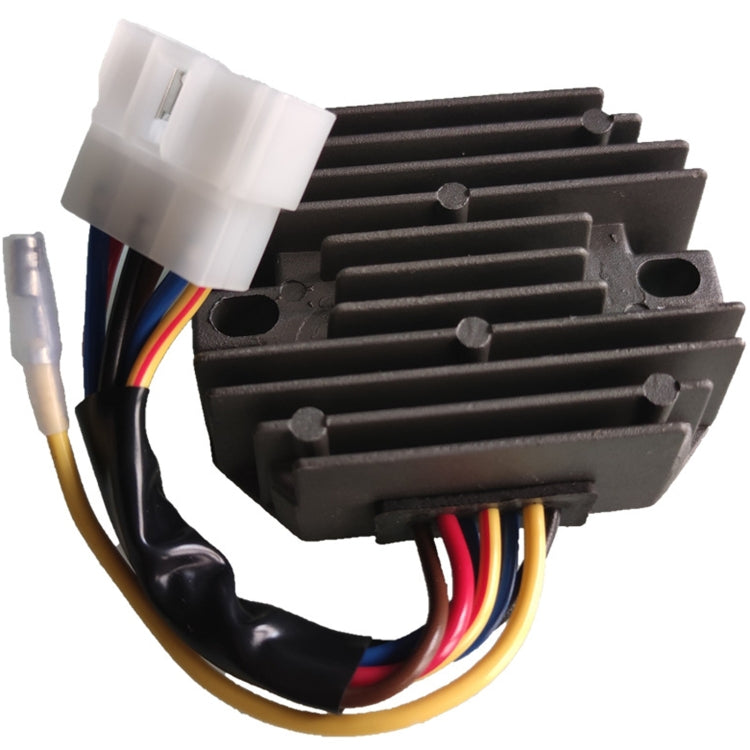

2013.0.2C Motorcycle Rectifier For 119653-7771011 119640-77711 RS5121
2013.0.2C Motorcycle Rectifier For 119653-7771011 119640-77711 RS5121
SKU: TBD05454372
Regular price
$38.00
Regular price
Sale price
$38.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Ships in 0–3 days
Quantity
Couldn't load pickup availability
1-Year Warranty
What's covered?
If your item develops a hardware fault or manufacturing defect, we've got you covered.
How we help
Our tech team is ready to test, repair, or replace your item to get you sorted as quickly as possible.
30-day returns
Fast refunds
Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage
Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
1. Weight: 160g
2. Wire length: 15cm
3. Output voltage: 14.5+/-0.5V
4. Applicable battery: 12V
5. Output current: 15A
6. Heat dissipation material: aluminum heat dissipation shell
7. The terminal is not an indicator light: When the alternator rotates, it is a positive pole; When the alternator is charging, the terminal becomes negative
Applicable models:
For 11964077710 119640-77711 11964077711
For 119653-77711 11965377710 11963577711 RS5121
For Japan Kubota KUBOTA engine generator impulse rectifier module original accessories Z482 D72
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burned out
