Installation Precautions: 1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier 2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved. 3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame 4. No other wires should be pressed between the rectifier and the frame 5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.

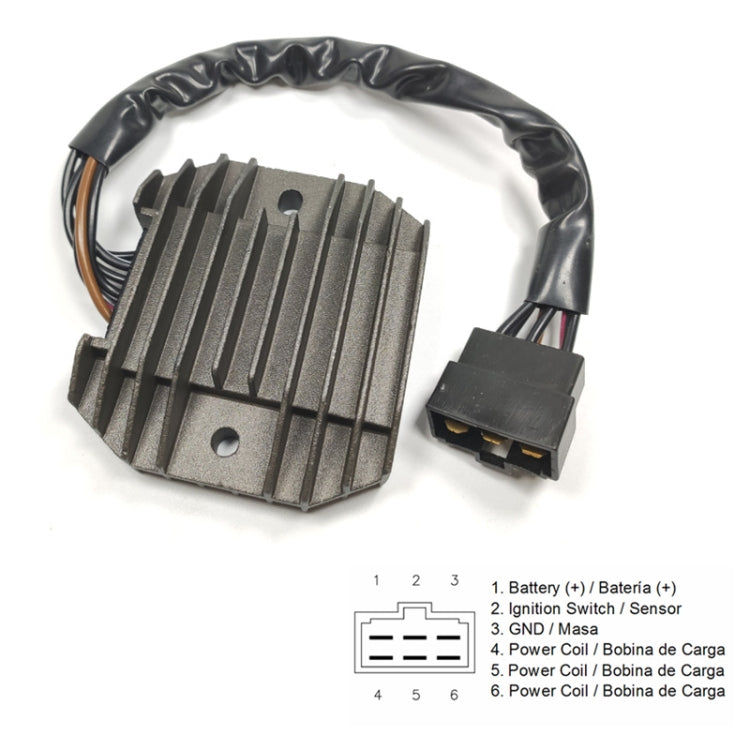

Applicable models: For YHC083/SKU336559 SH650-12 21066-1099 For Suzuki GSXR400 GK76A For Yamaha FZ1 FZ 1000 FAZER 2001-2005 For Yamaha XVS650 V-Star XV125 XV250 YHC-083 For Kawasaki VN400 For Kawasaki VN Vulcan 800 1995 2005 21066-1099 For Kawasaki VN Classic 800 1996 2005 21066-1099 For Kawasaki VN Drifter 800 2000 2006 21066-1099 For Kawasaki ZX 6R Ninja 600 1998 1999 21066-1099 For Reemplazo Shin Ngen SH650-12 Yamaha Prince
Verified Compatible
Guaranteed fit for your device. Wrong part? Full refund including shipping.
