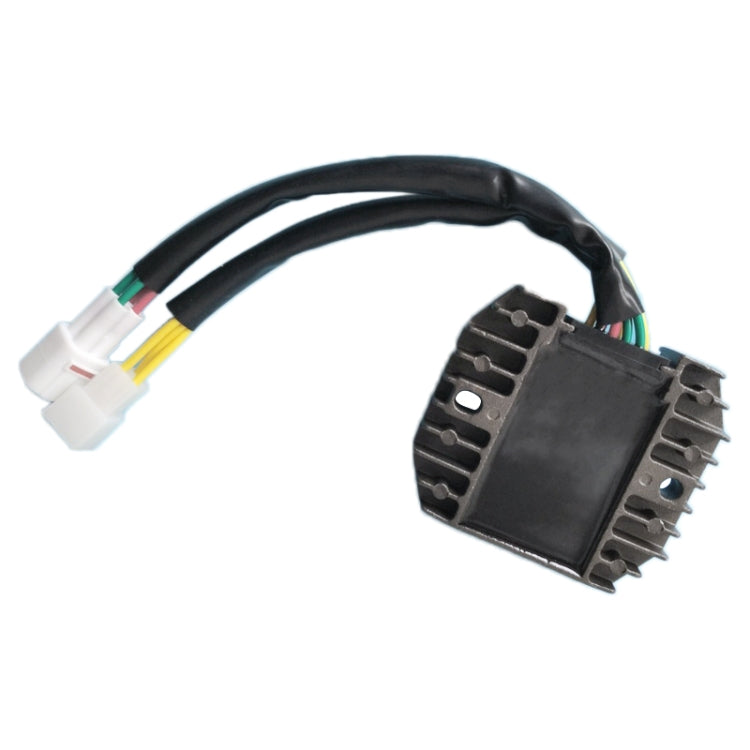

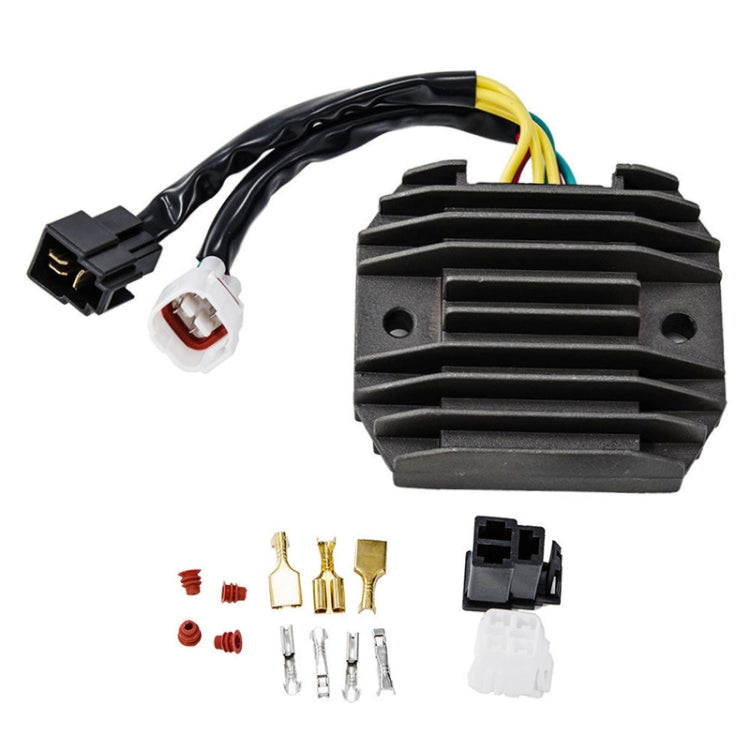

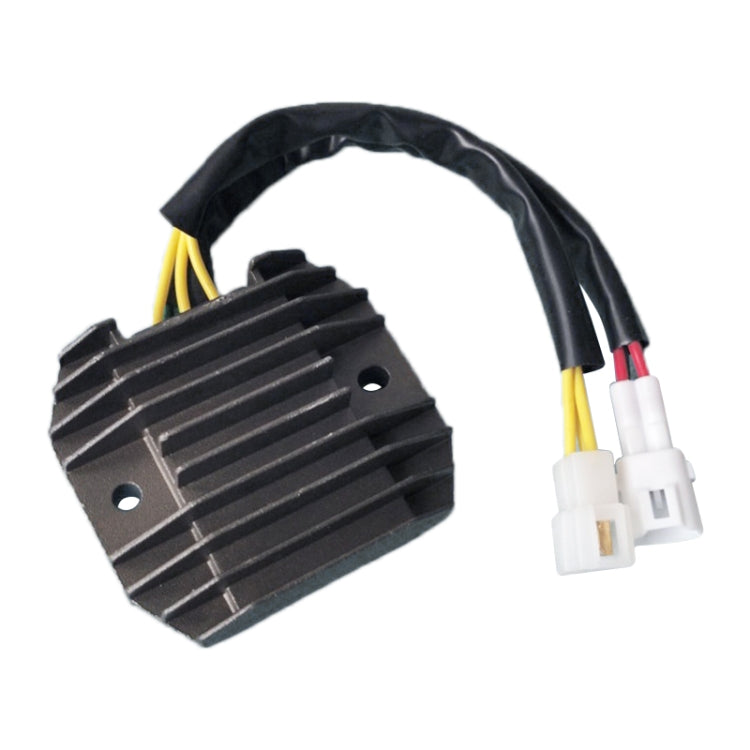

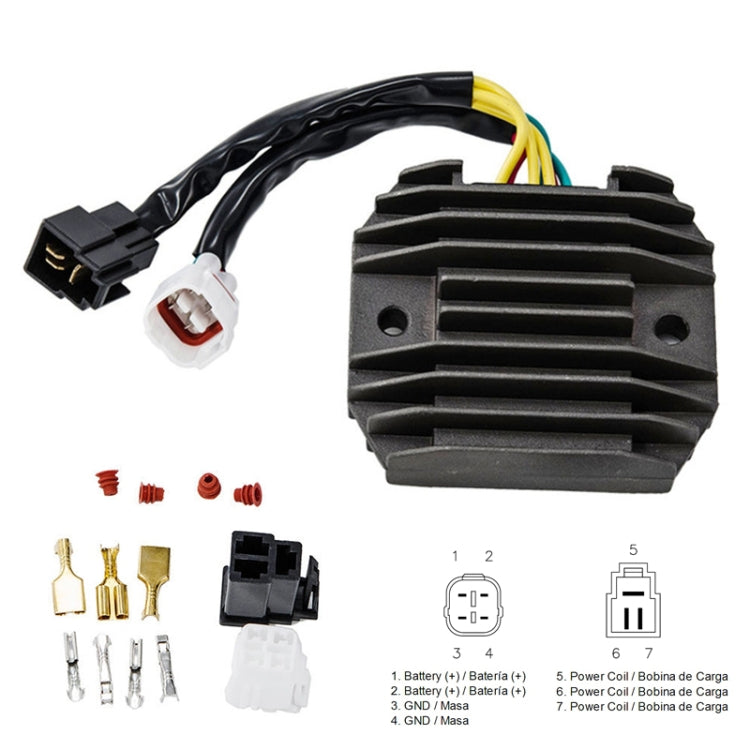

2005.10 Motorcycle Rectifier For Suzuki VZ 800 / GSX650F
2005.10 Motorcycle Rectifier For Suzuki VZ 800 / GSX650F
Estimated delivery:
Couldn't load pickup availability
Shipping Information
Shipping Information
FREE SHIPPING to UK & 40+ countries. Fully insured.
Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)
No hidden fees on orders under £135 (orders over £135 may have import duties)
Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Hassle-Free Returns
Hassle-Free Returns
Start your return online in seconds. No forms, no hassle.
Trusted by 80,000+ DIY & repair professionals
1. Weight: 260G
2. Output voltage: 14.5V
3. Category: Three-phase full-wave rectifier
4. Wire length: 25CM
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models:
2007-2008 for Suzuki Bandit 1250
2007-2009 applicable to Suzuki Bandit 1250 ABS
2009 for Suzuki Bandit 1250 S
2008-2009 applicable to Suzuki B-King GSX1300
2008 Applicable to Suzuki B-King GSX1300 ABS
2005-2008 for Suzuki Boulevard C90
2011 applies to Suzuki GSX 1250
2008-2009 for Suzuki GSX650F
2006-2011 for Suzuki GSXR 600
2006-2011 for Suzuki GSXR750
2007-2009 applicable to Suzuki GSXR 1000
2008-2009 2011 for Suzuki Hayabusa GSX1300R
2005-2006 for Suzuki LT-A 700X King Quad 4x4
2005-2006 for Suzuki Marau r VZ800
2005-2008 for Suzuki VL 800 C50/T
2003-2004 for Suzuki VL800 Volusia
2007-2009 for Suzuki VZ 800 M50
Suitable for Replacement # 10-203, 10-207, 32800-02h00, 32800-15h00, 32800-15h10, 32800-18h00,32800-41f10,32800-41f11,32800-47H10,32800-21H00,32800-47H00
Guaranteed fit for your device. Wrong part? Full refund including shipping.
