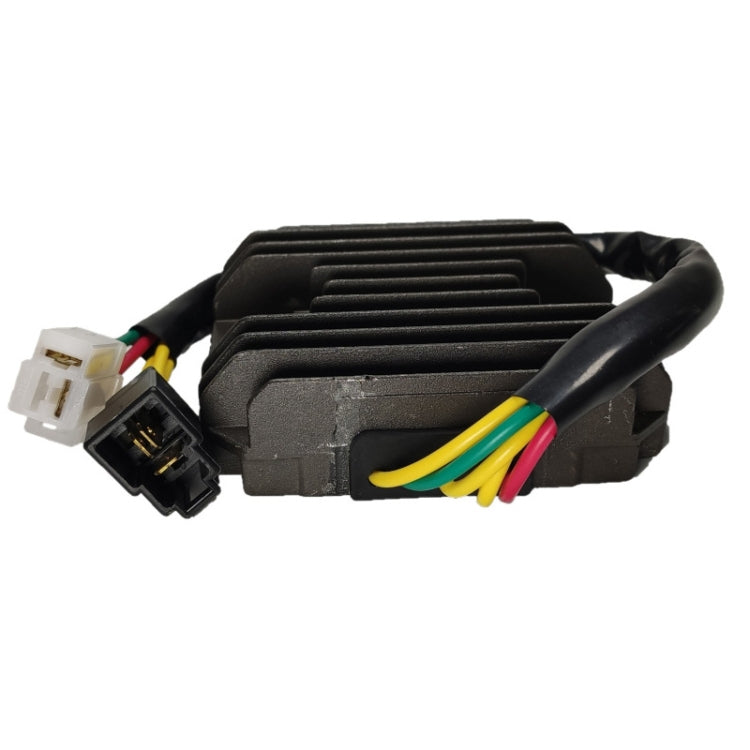

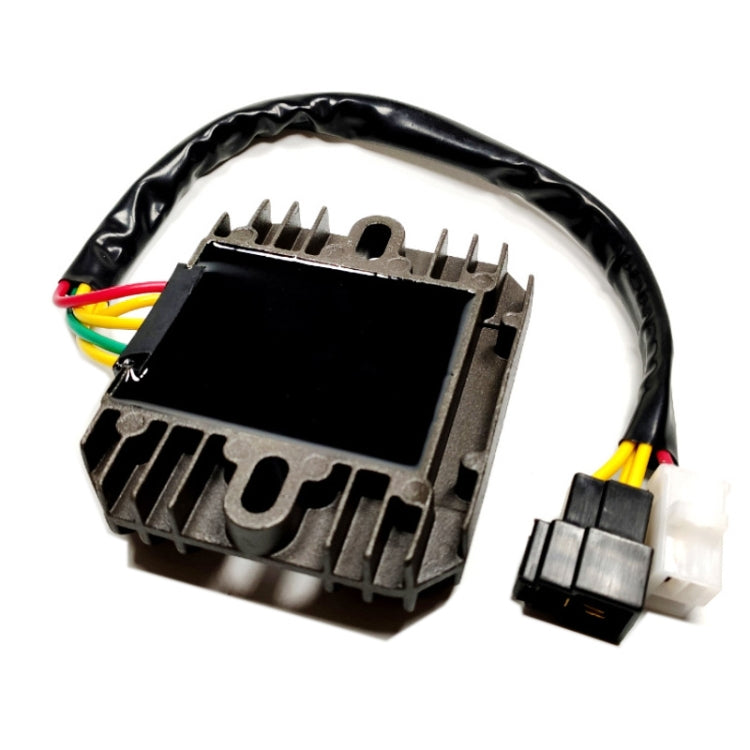

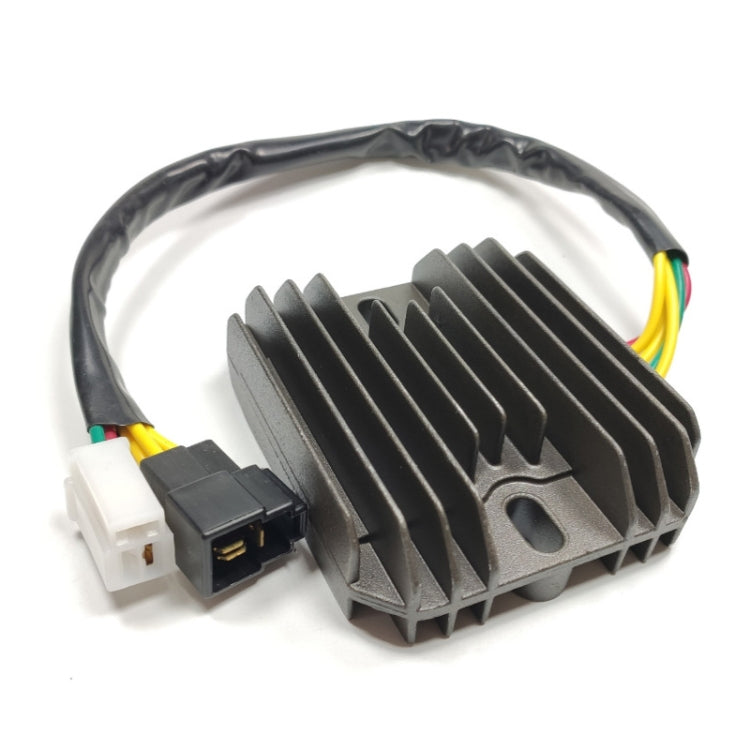

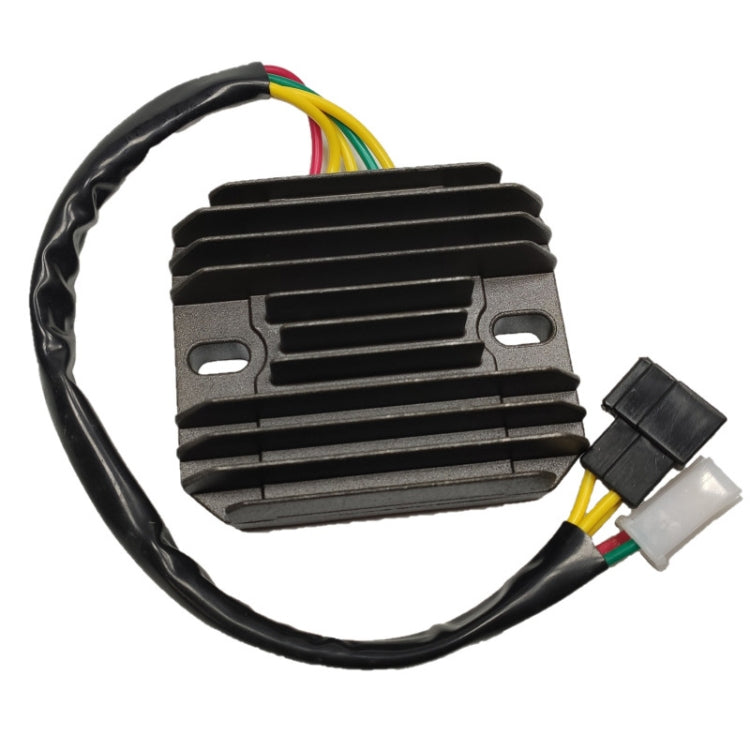

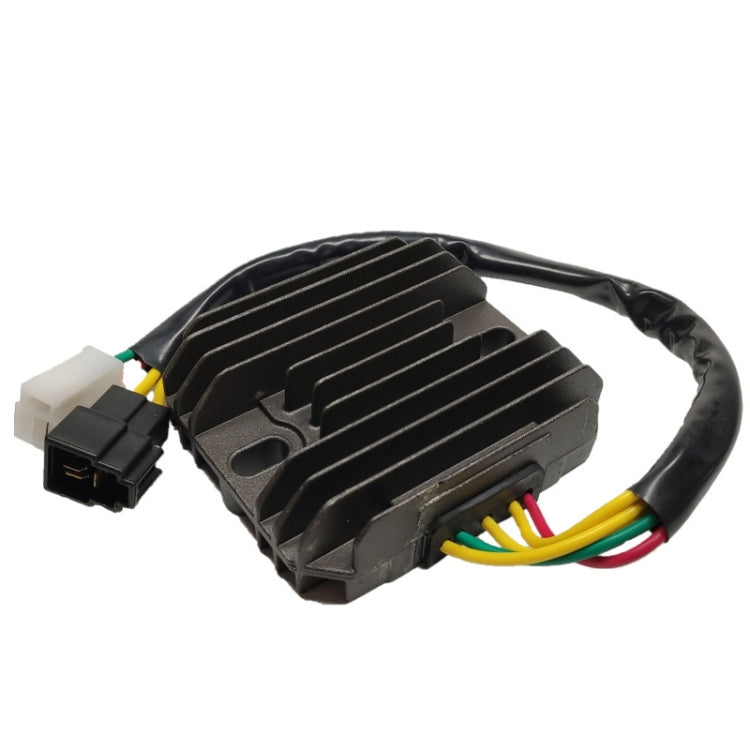

2002.1.1 Motorcycle Rectifier For Suzuki GSXR600 GSXR750 GSXR1000

1. Weight: 250G
2. Wire length: 25CM
3. Output current: 35A
4. Output voltage: 14.5V

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier

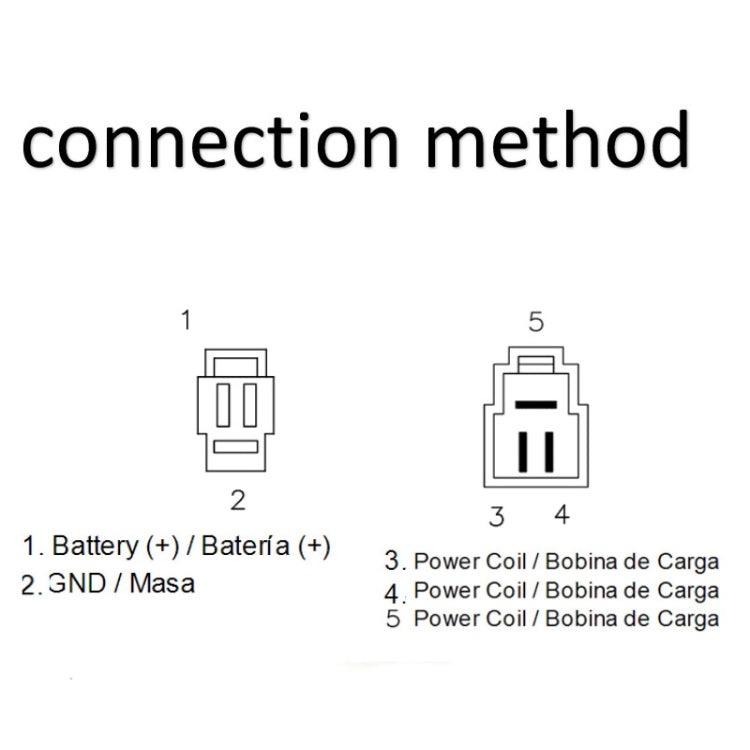

2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.

Applicable models:
For Cagiva Raptor 650 2001 2005
For Reemplazo Pietcard 1184
For Suzuki DR SE 350 1997 1999 32800-14D11
For Suzuki DR SE 250 1990 1995 32800-14D10
For Suzuki DR SE 350 1990 1996 32800-14D10
For Suzuki LS Savage LS650P K1 K2 K3 650 1996 2004 32800-24B01
For Suzuki LS Savage LS650 650 1995 32800-24B00
For Suzuki LS Boulevard LS650 650 2005 2012 32800-24B11
For Suzuki LS Savage LS650P K4 650 1996 2004 32800-24B10
For Suzuki LS Savage LS650 650 1986 1988 32800-24B00
For Suzuki SV 650 1999 2002 32800-24B01
For Reemplazo Shin Ngen SH535C-12
For Suzuki VX 800 1990 1993 32800-45C00
For Suzuki VZ Marau r 800 1997 2004 32800-45C0
