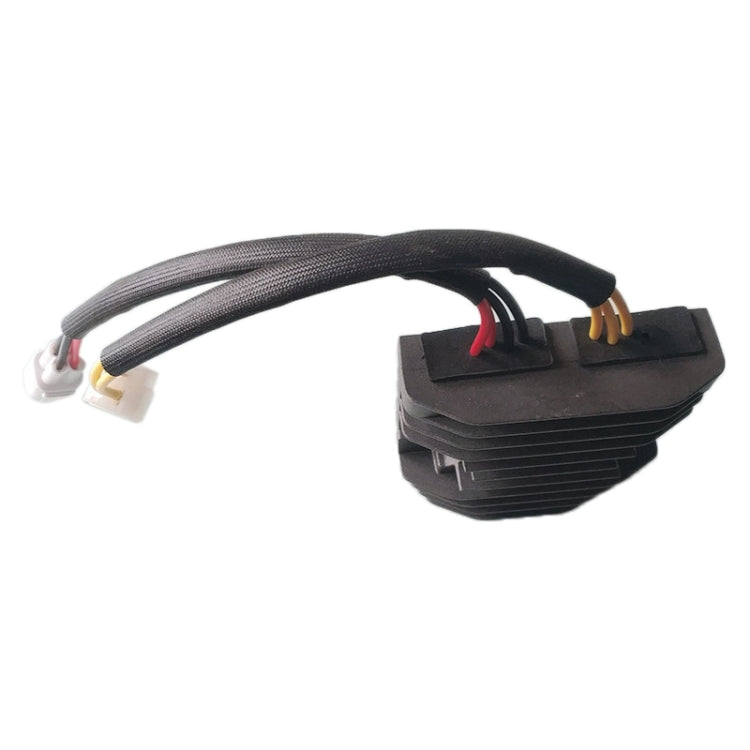

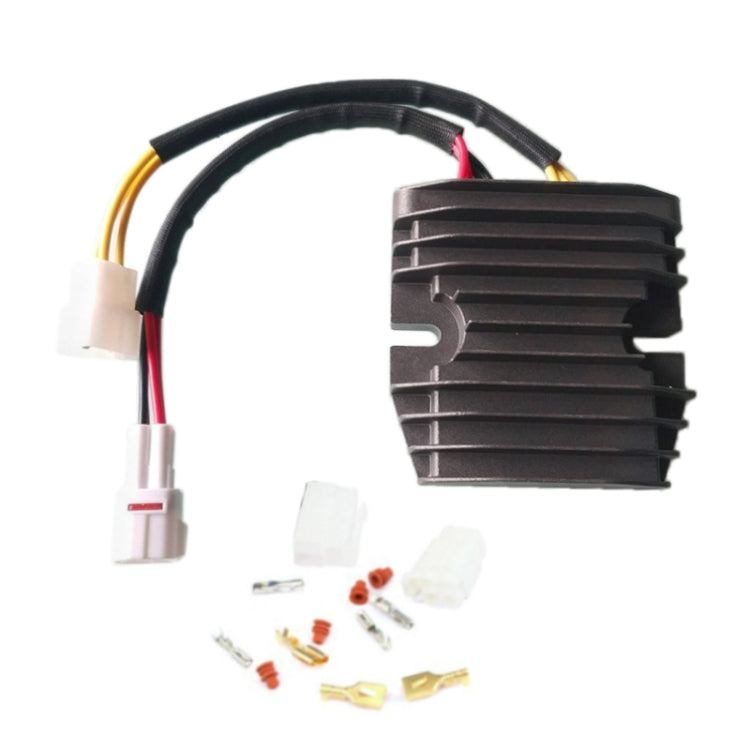

2001C.3 Motorcycle Rectifier For Suzuki GSXR 750/GSXR 600/GSXR 1000/Boulevard C50 VL800/Boulevard C50T VL800T
2001C.3 Motorcycle Rectifier For Suzuki GSXR 750/GSXR 600/GSXR 1000/Boulevard C50 VL800/Boulevard C50T VL800T
Estimated delivery:
Couldn't load pickup availability
Shipping Information
Shipping Information
FREE SHIPPING to UK & 40+ countries. Fully insured.
Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)
No hidden fees on orders under £135 (orders over £135 may have import duties)
Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Hassle-Free Returns
Hassle-Free Returns
Start your return online in seconds. No forms, no hassle.
Trusted by 80,000+ DIY & repair professionals
1. Weight: 360G
2. Wire length: 1.5 square meters x 30CM
3. Output voltage: 14.5+/-0.5V
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative outputs are not connected, start the locomotive, measure the positive and negative output voltages, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The whole installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burnt out
Applicable models:
For Suzuki GSXR 750 -- 2006-2009, 2011-2017
For Suzuki GSXR 600 -- 2006-2009, 2011-2017
For Suzuki GSXR 1000 -- 2007-2009, 2012-2016
For Suzuki Boulevard C50 VL800 -- 2005-2007, 2013-2015
For Suzuki Boulevard C50T VL800T -- 2014-2015
For Suzuki SV 650 -- 2017
For Suzuki Boulevard C90T VL1500T -- 2005-2009
For Suzuki Boulevard C90 VL1500 -- 2005-2009
For Suzuki Boulevard M50 VZ800 -- 2005-2009, 2013-2017
For Suzuki GSF 1250 Bandit -- 2007-2009
For Suzuki LTA 700 X KingQuad -- 2005-2006
For Suzuki GSX 650 F -- 2008-2009
For Suzuki GSX 1300 B-King -- 2008-2009
For Suzuki GSX 1250 -- 2011
For Suzuki Hayabusa GSX 1300 R -- 2008-2009, 2011-2012
For Suzuki VL800 Volusia (Mo l K1) -- 2001-2005
For Suzuki VL800 Volusia (Mo l K2) -- 2001-2005
For Suzuki VL800 Volusia (Mo l K3) -- 2001-2005
For Suzuki VL800 Volusia (Mo l K4) -- 2001-2005
For OEM Part Replacement
For 32800-02H00
For 32800-15H00
For 32800-15H10
For 32800-18H00
For 32800-41F00
For 32800-41F10
For 32800-47H10
For 32800-15H01
For 32800-21H00
For 32800-15H11
For 32800-41F01
For 32800-41G00
For 32800-41F11
For 32800-47H00
Guaranteed fit for your device. Wrong part? Full refund including shipping.
