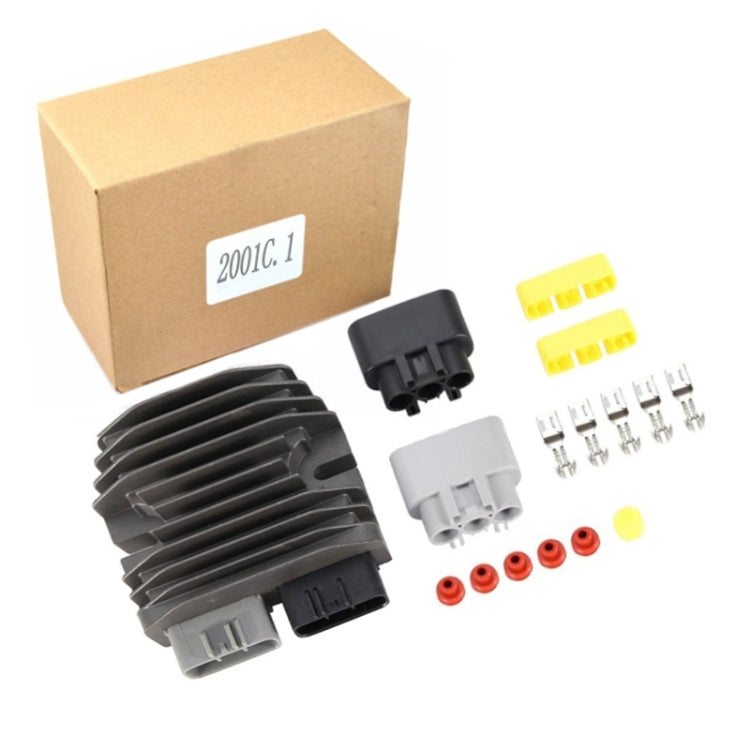

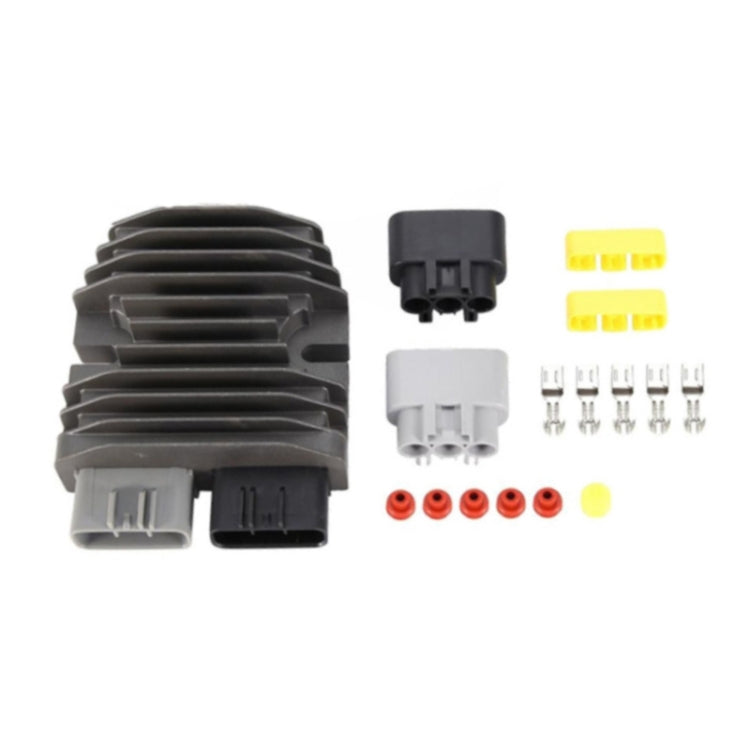

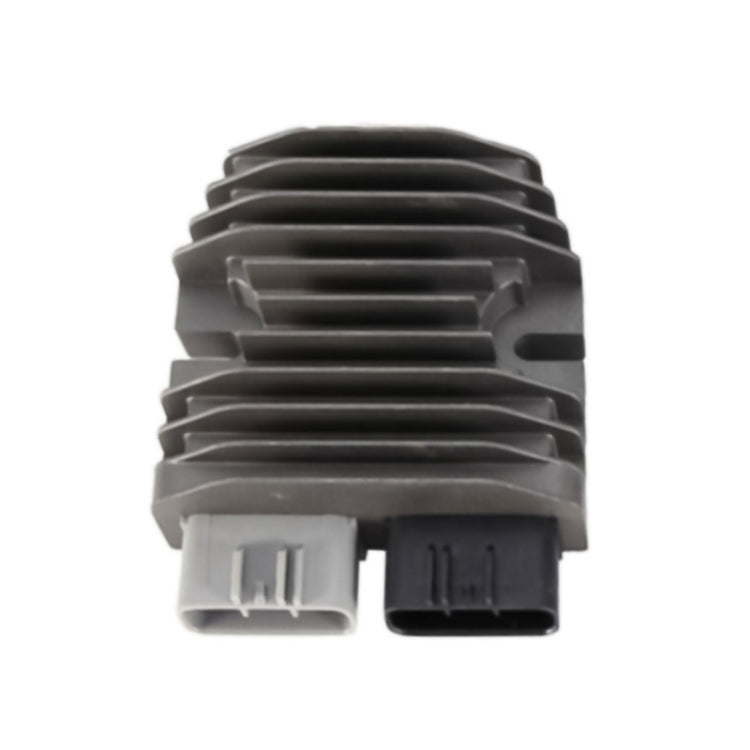

2001C.1 Motorcycle Rectifier For Yamaha FZ8 Fazer 800 2009 2011 1D7-81960-00
2001C.1 Motorcycle Rectifier For Yamaha FZ8 Fazer 800 2009 2011 1D7-81960-00
SKU: TBD0545742101
Regular price
$54.00
Regular price
Sale price
$54.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Product Details
Type:
Voltage Stabilizer
1. Weight: 360g
2. Wire length: 40cm

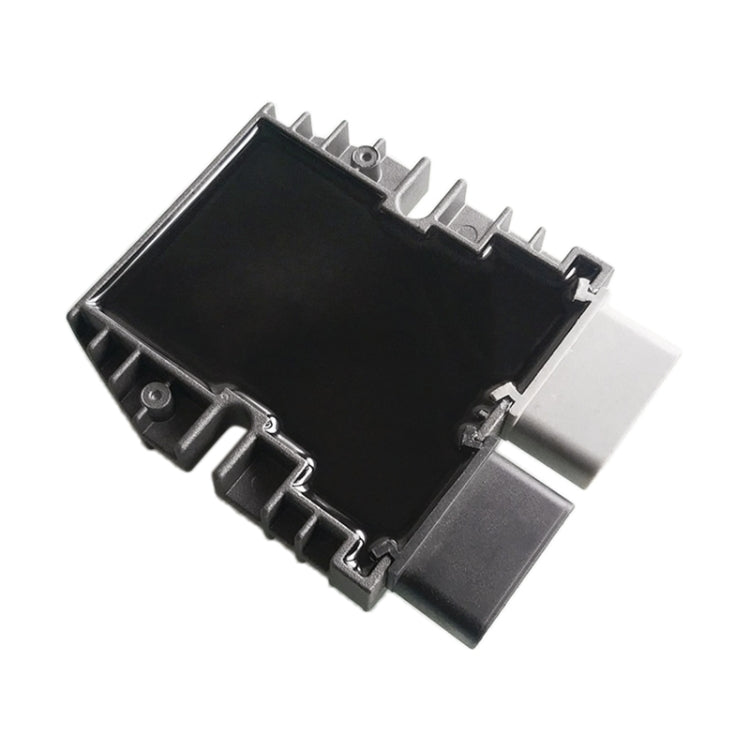

3. Aluminum shell size: 83x94x25.7mm
4. Output voltage: 14.5v
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The whole installation process should be recorded and saved.
3. Pay attention that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged.
Applicable models:
For Mosfet Yamaha Rai r / YZF R1 2002-2014 Yamaha FJR FJR1300 1300 2003 2005 5JW-81960-00
For Yamaha FZ8 Fazer 800 2009 2011 1D7-81960-00
For Yamaha FZ8 Fazer 800 2009 2011 1D7-81960-01
For Yamaha FZ8 N 800 2009 2011 1D7-81960-01
For Yamaha FZ8 N 800 2009 2011 1D7-81960-00
For Yamaha FZ8 S 800 2009 2011 1D7-81960-00
For Yamaha FZ8 S 800 2009 2011 1D7-81960-01
For Yamaha MT 01 1700 2007 5YU-81960-00
For Yamaha RS Nytro 900 2006 2007 5JW-81960-00
For Yamaha RS Vector 900 2005 2009 5JW-81960-00
For Yamaha RS Venture 900 2005 2013 5JW-81960-00
For Yamaha RSG Rage 900 2005 2007 5JW-81960-00
For Yamaha RX RX1 1000 2003 2005 5JW-81960-00
For Yamaha RX Apex 1000 2006 2010 5JW-81960-00
For Yamaha RX Warrior 1000 2004 2005 5JW-81960-00
For Yamaha RXW Attak 1000 2006 2007 5JW-81960-00
For Yamaha VK Professional 1000 2006 2013 5JW-81960-00
For Yamaha XTZ Tenere 1200 2010 2012 1D7-81960-00
For Yamaha XTZ Tenere 1200 2013 2017 1D7-81960-01
For Yamaha XV Road Star Warrior 1700 2003 2009 5JW-81960-00
For Yamaha XVS 950 2009 2011 1D7-81960-01
For Yamaha XVS V Star 1300 2011 2013 27D-81960-00
For Yamaha XVS V Star Tourer 950 2011 2013 27D-81960-00
For Yamaha XVS V Star 950 2011 2013 27D-81960-00
For Yamaha XVS Stryker 1300 2011 2013 27D-81960-00
For Yamaha XVS V Star Tourer 1300 2011 2013 27D-81960-00
For Yamaha XVS 950 2009 2011 1D7-81960-00
For Yamaha YZF R1 1000 2002 2003 5JW-81960-00
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
