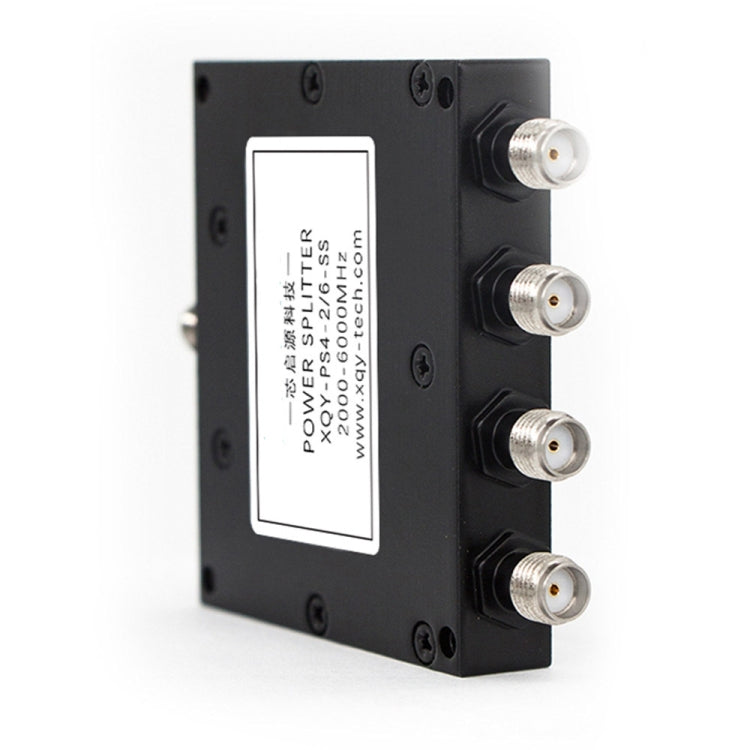

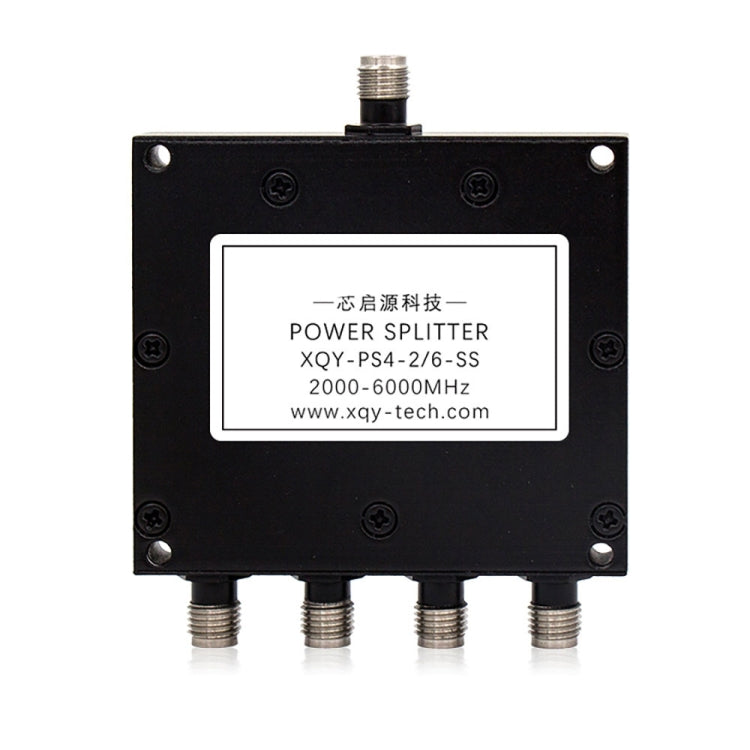

2000~6000MHz SMA 1 To 4 Microstrip Power Splitter
2000~6000MHz SMA 1 To 4 Microstrip Power Splitter
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Impedance: 50 Ohms
2. Phase balance: ±4 degrees
3. Surface treatment: black paint
4. Port connector: SMA-Female
5. Low insertion loss, low standing wave, high isolation
6. Working temperature: -45~+85 degrees celsius
7. Frequency range: 2000~6000MHz
8. Amplitude balance: ±0.2dB
9. Isolation: Min.20dB
10. Input standing wave: Typ. 1.8/Max.1.25
11. Output standing wave: Typ. 1.15 / Max.1.2
12. Withstand power: 30W for splitter; 2W for combiner
13. Insertion loss: less than or equal to 0.8dB (excluding theoretical loss of 6dB)
14. Dimensions: 56x50x10mm
15. Weight: 64g
