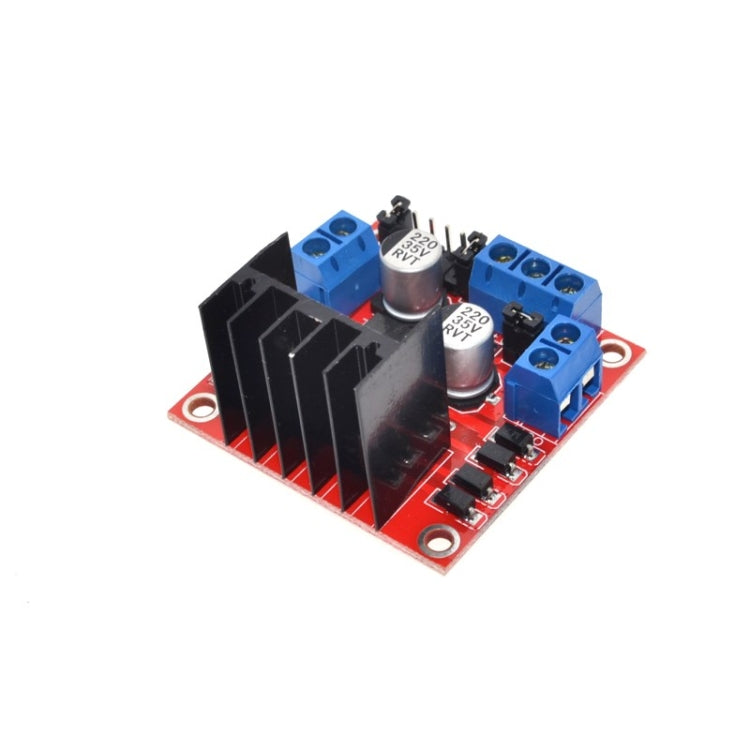

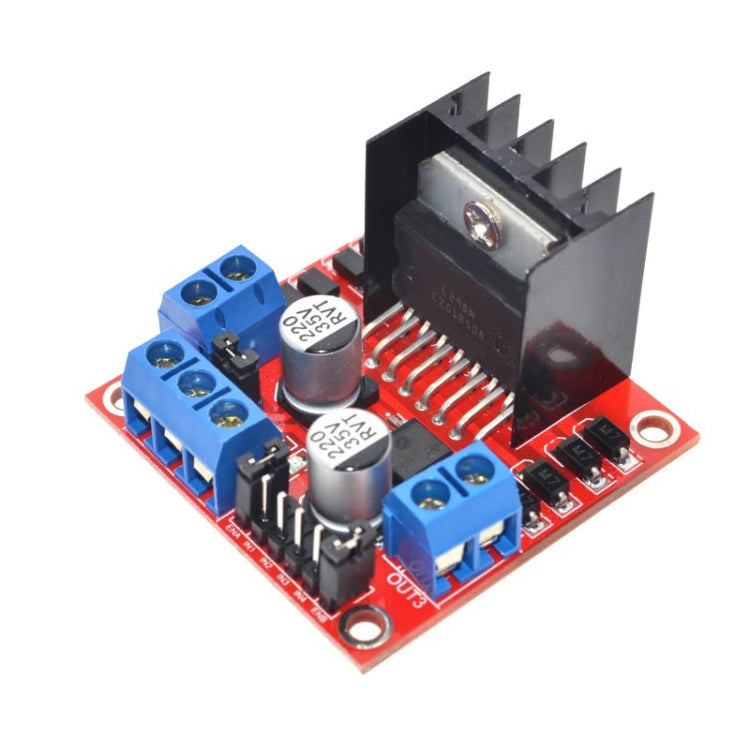

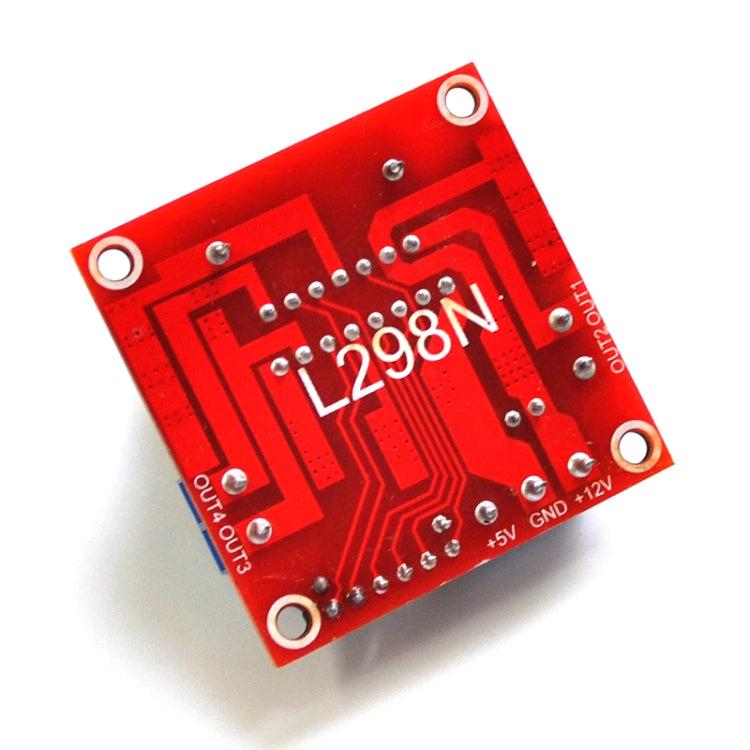

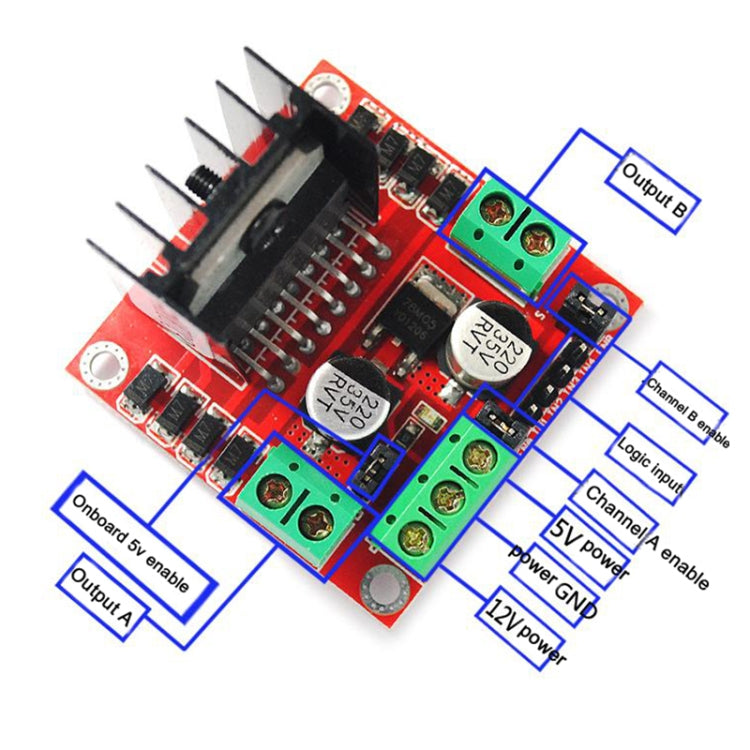

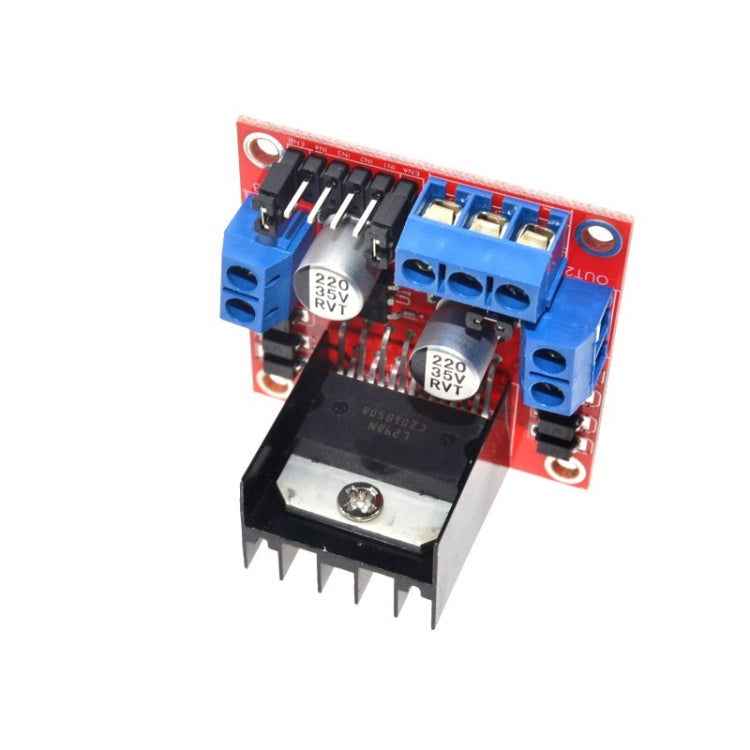

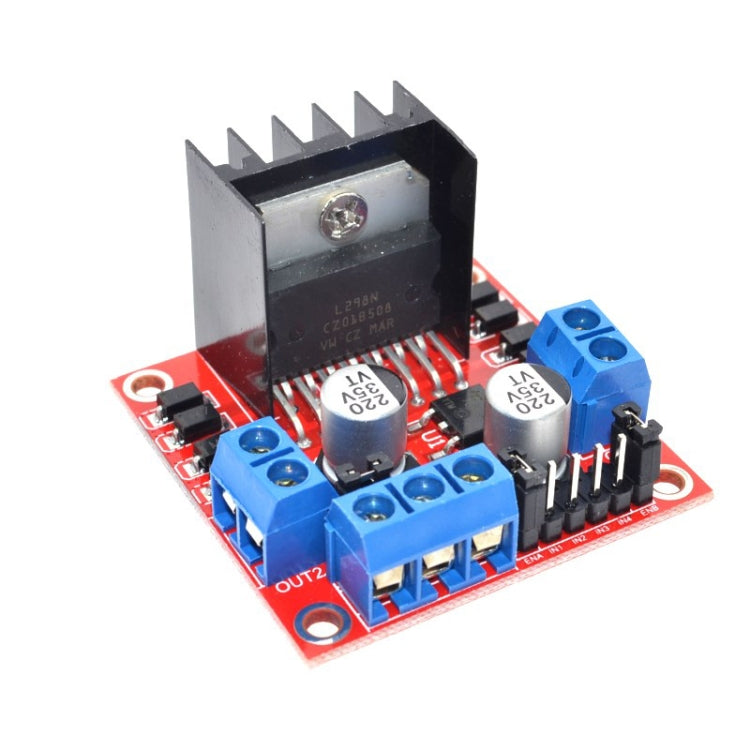

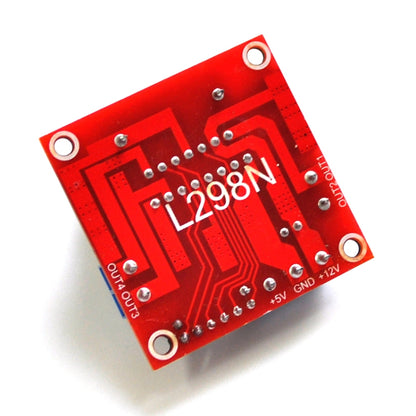

1. The module uses STs L298N as the main driving chip, which has the characteristics of strong driving ability, low heat generation and strong anti-jamming ability. 2. The module can use the built-in 78M05 to work through the drive power supply, but in order to avoid damage to the voltage regulator chip, when using a drive voltage greater than 12V, please use an external 5V logic power supply 3. This module uses large-capacity filter capacitors and freewheeling protection diodes, which can improve reliability 4. The high-voltage and high-current full-bridge driver with two bridges can be used to drive inductive loads such as DC motors, stepping motors, relay coils, etc. 5. It has two enable control terminals, allowing or prohibiting the device to work without being affected by the input signal. There is a logic power input terminal to make the internal logic circuit work at low voltage. 6. Features: high working voltage, large output current, using standard logic level signal control 7. An external detection resistor can be connected to feedback the change to the control circuit 8. Drive voltage: 5-35v 9. Drive current: 2A 10. Working voltage: 5v 11. Working current: 0-36mA 12. Storage temperature: -20 to 135 degrees Celsius 13. Main control chip: L298N 14. Packing: Individually packed in anti-static bag 15. Rated power: 25w 16. Working mode: double H-bridge drive 17. Weight: 30g 18. Size: 43x43x27mm
