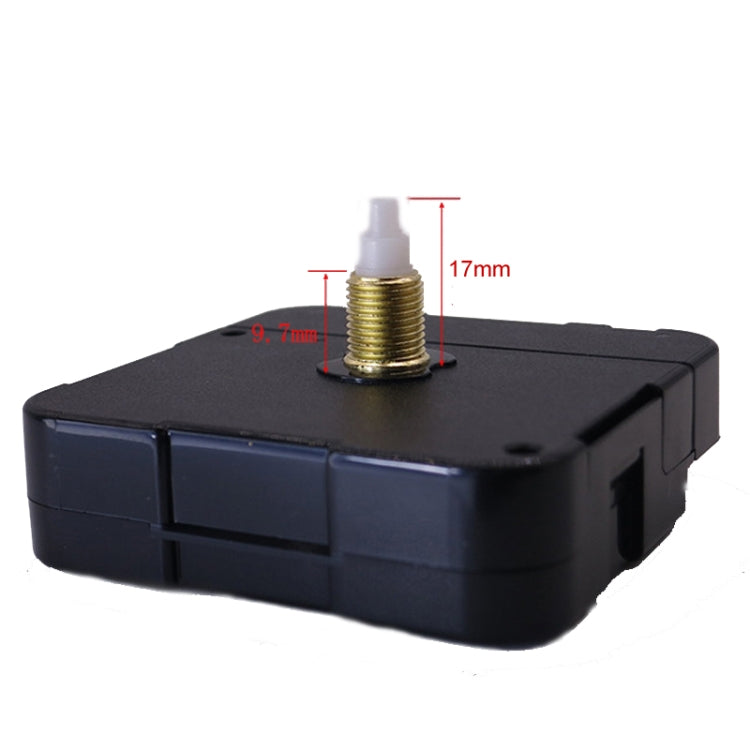

2 PCS HR1688 Quartz Clock Mechanism Movement,Spec: 17mm/ 9.7mm
2 PCS HR1688 Quartz Clock Mechanism Movement,Spec: 17mm/ 9.7mm
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

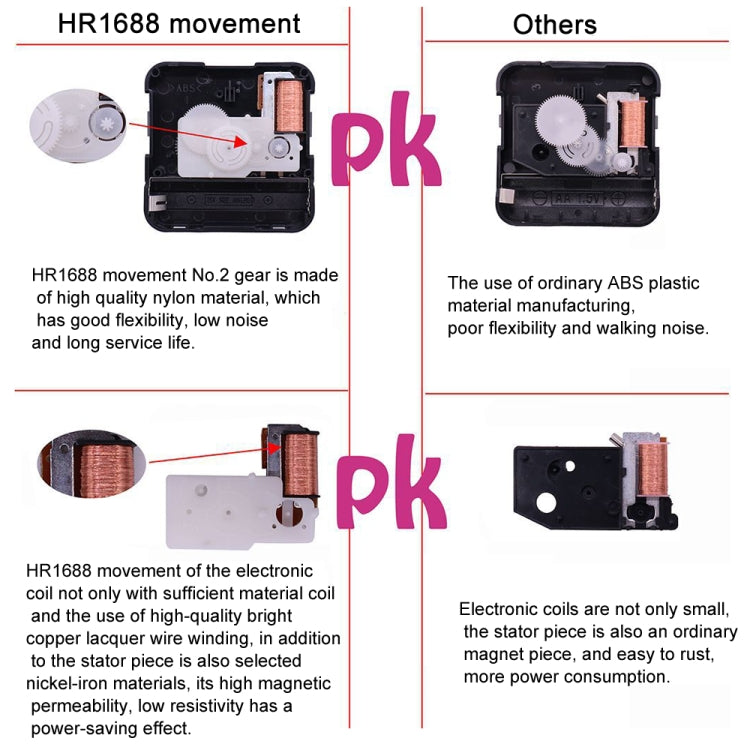

1. The movement gear is made of high quality nylon material, which is flexible, low noise and long service life.
2. HR1688 movement of the electronic coil not only with sufficient material coil and the use of high-quality bright copper lacquer wire winding, in addition to the stator piece is also the choice of nickel-iron materials, its high magnetic permeability, low resistivity has a power-saving effect.
3. Crystal frequency: 32.768KHz
4. Time accuracy: +/-30Sec/Month(1.5V DC. 25 degrees Celsius)
5. Current consumption: Less than 130μA (1.5V DC.)
6. Operating voltage: 1.3v to 1.7v
7. Operating temperature: -10-50 degrees Celsius
8. Power supply: 1.5v AA batteries (batteries are not included)
9. Weight: approximate 25g/PC
10. Second hand output torque: less than or equal to 0.6gf-cm (1.5V)
11. Minute hand output torque: less than or equal to 30gf-cm (1.5V)

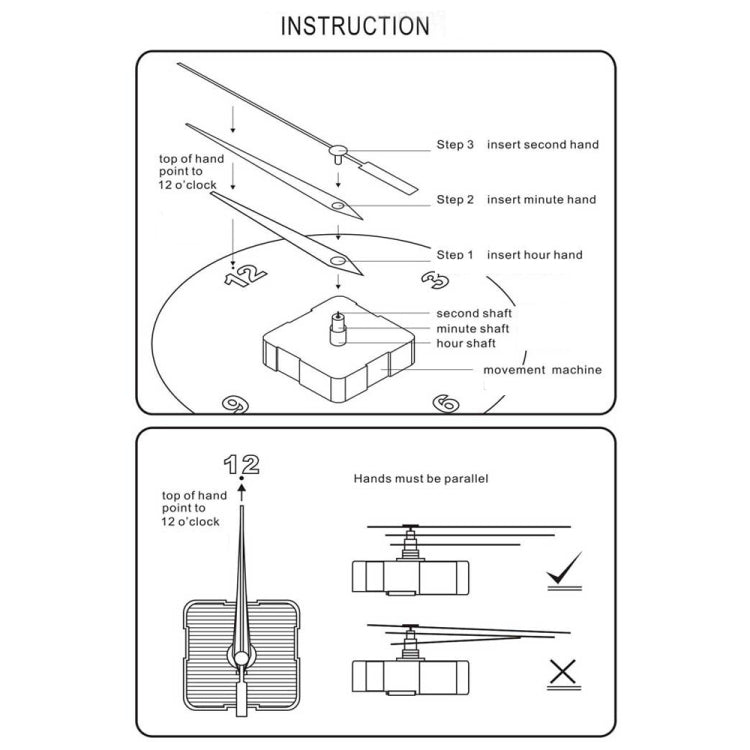

12. Pointer specification requirements:
-Second hand length/weight: less than or equal to 130mm, less than or equal to 2g
-Minute hand length/weight: less than or equal to 200mm, less than or equal to 6g
-Second hand unbalance torque: less than or equal to 0.15gf-cm
-Minute hand unbalance torque: less than or equal to 6gf-cm
Note: The movement battery slot is generally not equipped with a battery cover, with gold hexagonal plane nut, gold washer, black rubber pad
