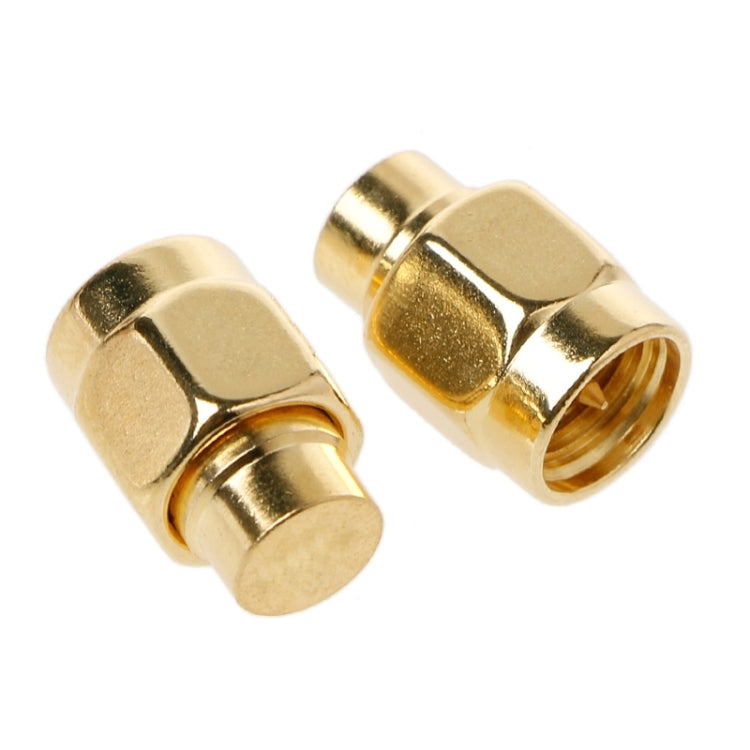

2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector

Name: 2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector
Brand: buy2fix
SKU: PC5636
Availability: InStock

$13.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

1. Temperature range: -65 ~ + 165 degrees Celsius (PE Cable -40 ~ + 85 degrees Celsius)
2. Vibration: Vibration MIL-STD-202, Method 213
3. Characteristic Impedance: Impedance 50ohm
4. Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz)
5. Operating voltage: Working Voltage 335V max (RMS)
6. Pressure: Withstand Voltage 1000V rms (sea level minimum)
7. Contact resistance: Contact resistance
8. Between the inner conductors: Center Contact <= 3M ohm
9. Outside conductor: Outer Contact <= 2M ohm
10. Insulation resistance: Insulation resistance >= 5000M ohm
11. Insertion loss: <=0.15 dB / 6 GHz
12. Voltage Standing Wave Ratio:
- Straight: Straight Soft Cable <=1.10 + 0.002f
Semi-Rigid Cable <=1.05 + 0.001f
- Curved: Right angle soft cable <=1.20 + 0.003f
semi-rigid cable <=1.10 + 0.001f
13. Durability (Dating (mating): >= 500 times (cycles)

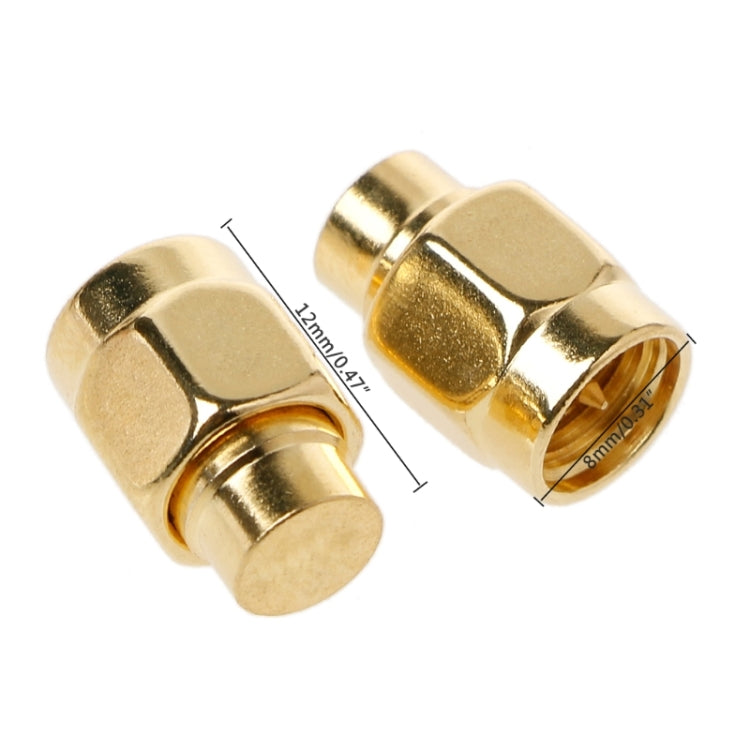

14. Size:12x8mm/0.47x0.31
