12V 1 Way Relay Module Low Power Trigger Relay Expansion Board
12V 1 Way Relay Module Low Power Trigger Relay Expansion Board
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. This module complies with international safety standards, with isolation slots between the control area and the load area

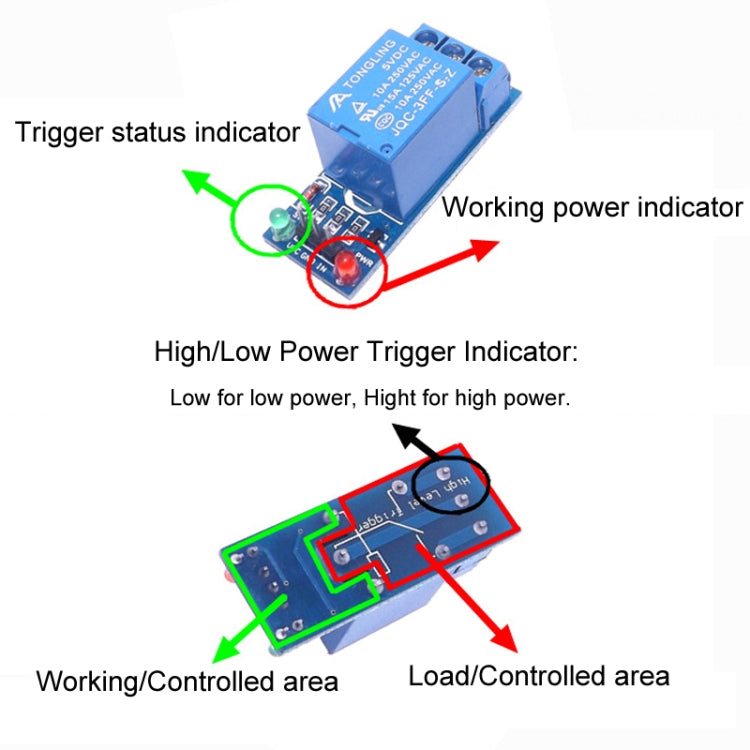

2. Using relays, with power and relay action indication, absorb bright, disconnect not bright
3. When there is signal at the signal input, the common terminal and the normally open terminal will conduct
4. It can be used as a microcontroller development board module, and can be used for home appliance control
5. Control DC or AC signals, can control 220V AC loads
6. There is a normally open and a normally closed contacts
7. Blue KF301 terminals to connect the control line is more convenient
8. Weight: about 12.4 g
9. Size: about 4.3 x 2.7 cm

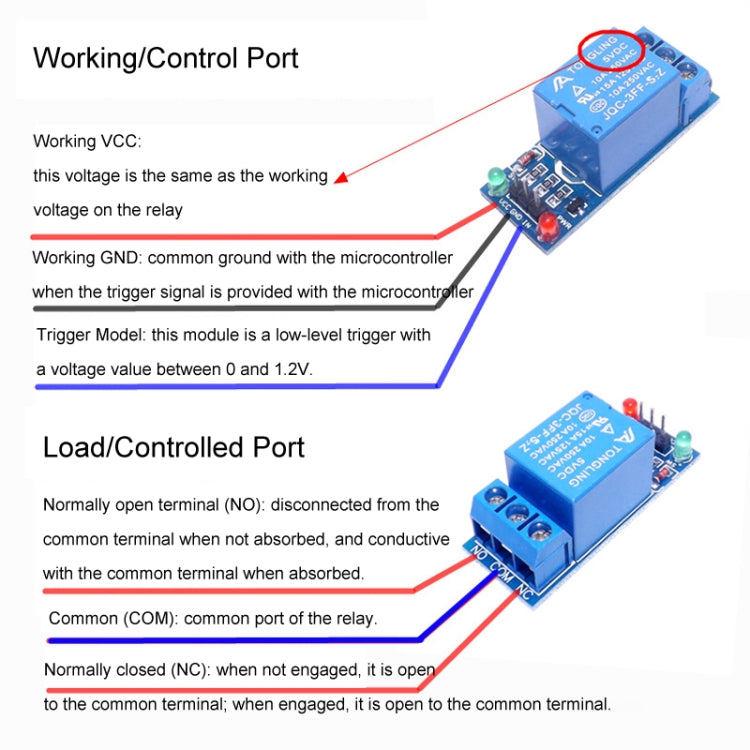

About the high level and low level trigger mode description:
1. High level triggering refers to the triggering mode where there is a voltage between the signal input and ground, which can be understood as a mode of triggering by short-circuiting the signal input and the positive pole of VCC
2. Low level trigger refers to the trigger mode where the voltage between the signal input and the ground is OV, which can be understood as a mode where the signal input is triggered by a short circuit with the negative pole of GND
