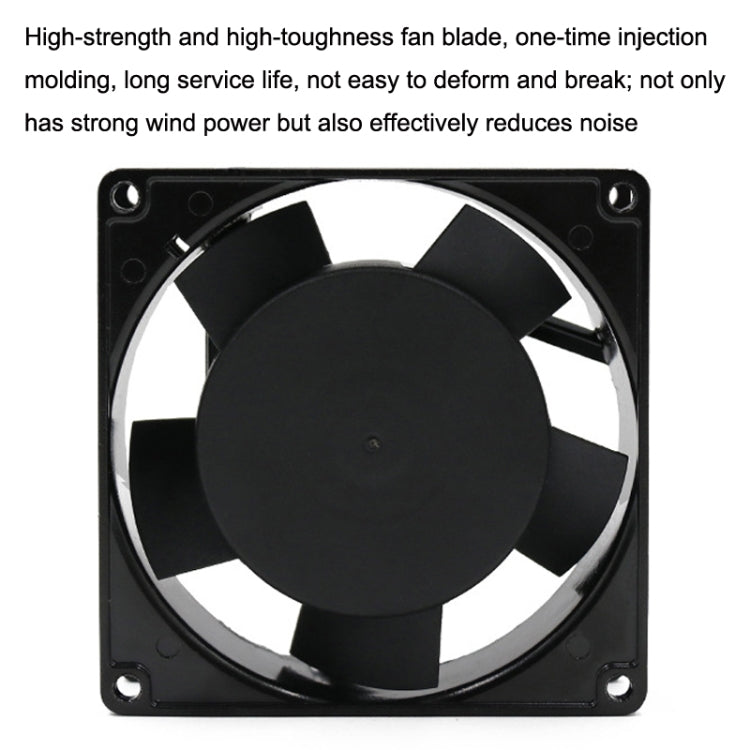

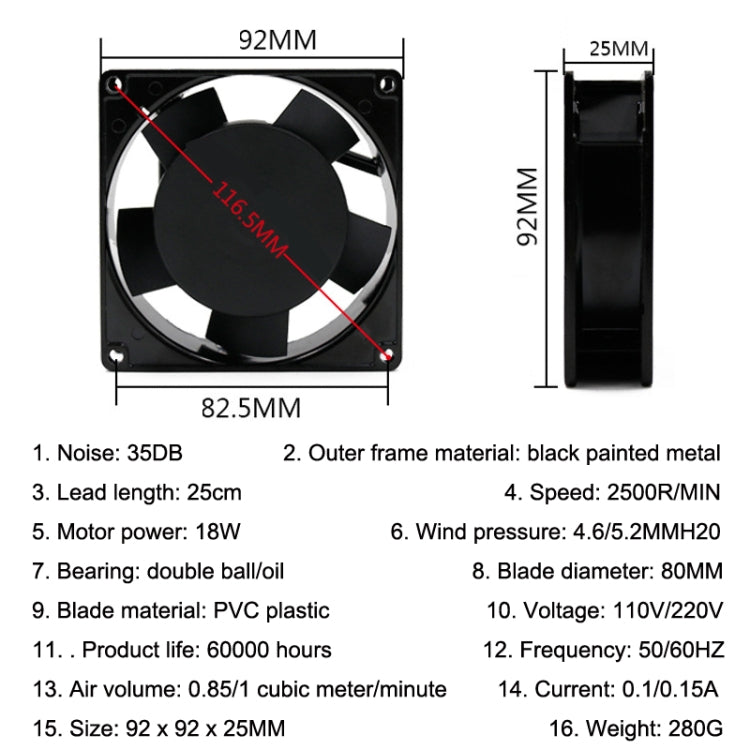

1. Copper core motor, strong wind, fast heat dissipation, safe and durable 2. Low noise, long life, low energy consumption, large air volume, stable operation, fast start 3. High-strength and high-toughness fan blade, one-time injection molding, long service life, not easy to deform and break; not only has strong wind power but also effectively reduces noise 4. The metal shell is strong and durable, with the characteristics of anti-drop, corrosion resistance, oxidation resistance, high temperature resistance, etc.; it can be used in high temperature environment for a long time, with stable performance 5. Scope of application: heat dissipation of mechanical equipment 6. Applicable temperature: -10 to 60 degrees Celsius 7. Noise: 35DB 8. Number of blades: 6 9. Voltage: 110V/220V 10. Lead length: 25cm 11. Speed: 2500R/MIN 12. Motor power: 18W 13. Current: 0.1/0.15A 14. Bearing: double ball/oil 15. Blade diameter: 80MM 16. Blade material: PVC plastic 17. Outer frame material: black painted metal 18. Product life: 60000 hours 19. Frequency: 50/60HZ 20. Air volume: 0.85/1 cubic meter/minute 21. Wind pressure: 4.6/5.2MMH20 22. Size: 92 x 92 x 25MM 23. Weight: 280G

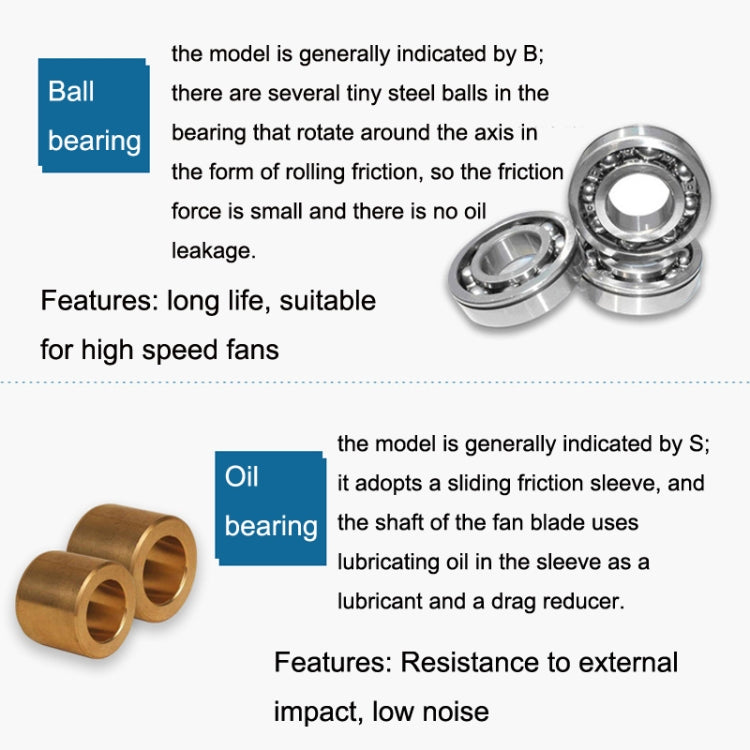

Difference: - Ball bearing: the model is generally indicated by B; there are several tiny steel balls in the bearing that rotate around the axis in the form of rolling friction, so the friction force is small and there is no oil leakage. Features: long life, suitable for high speed fans - Oil bearing: the model is generally indicated by S; it adopts a sliding friction sleeve, and the shaft of the fan blade uses lubricating oil in the sleeve as a lubricant and a drag reducer. Features: Resistance to external impact, low noise
