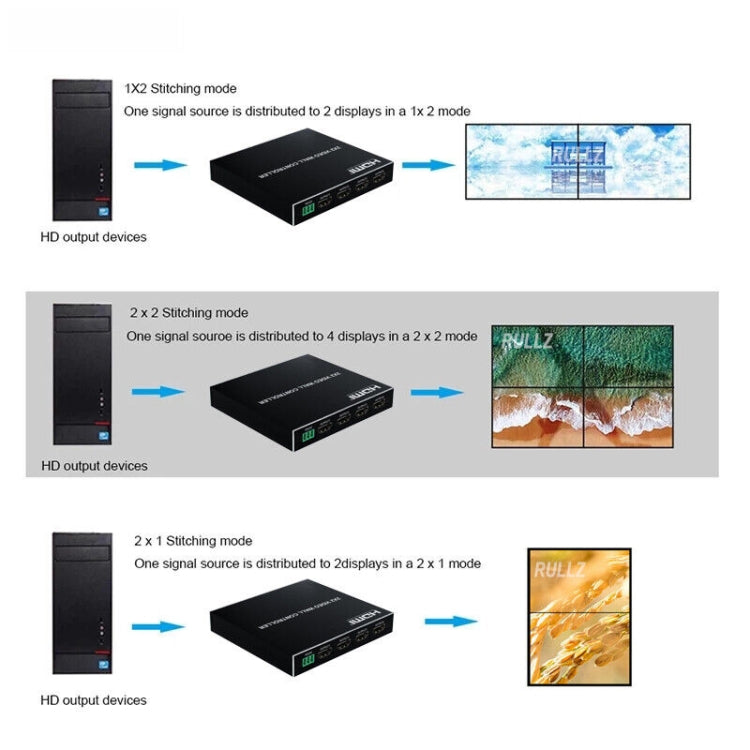

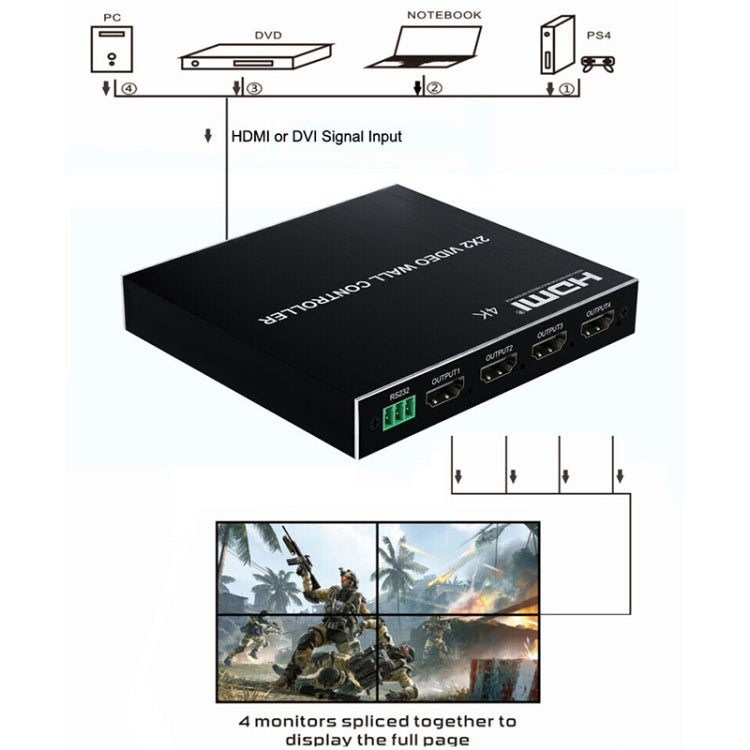

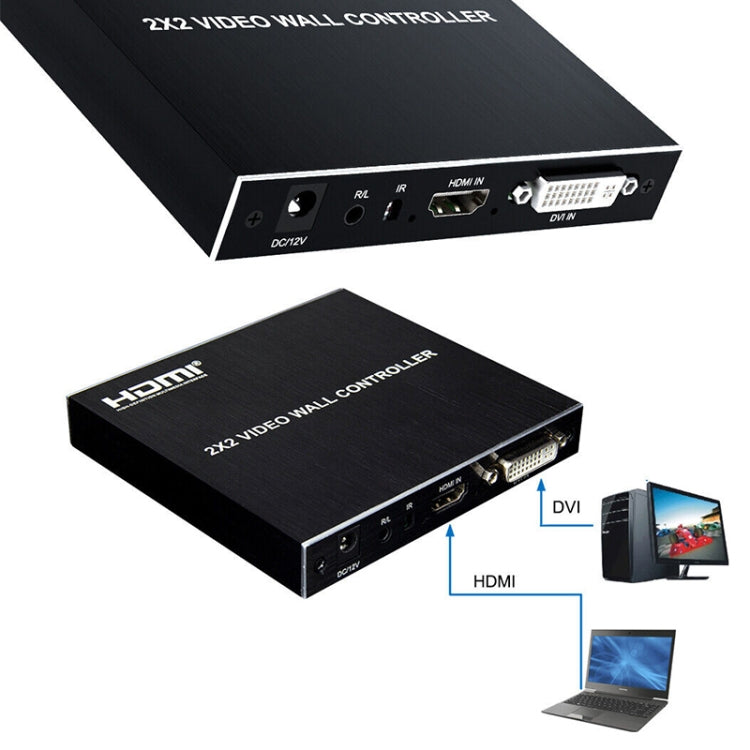

Features: 1. Support HDMI and DVI input 2. Support four HDMI outputs 3. The output supports RGB 4:4:4 4. The input resolution supports 1080P/1080i/720P/576P/576i/480P 5. The output resolution supports 1080P/1080i/720P/576P/576i/480P 6. Support RS232 control 7. Support 2x2/1x2/2x1 splicing, easy to operate, plug and play 8. Support 2x2 automatic stitching function 9. The main function is to divide a complete HDMI/DVI high-definition image signal into 4 blocks and then distribute them to 4 video display units (such as rear projection units, LCD TVs, etc.), and complete 4 hdmi high-definition video display units to form one Dynamic image large screen

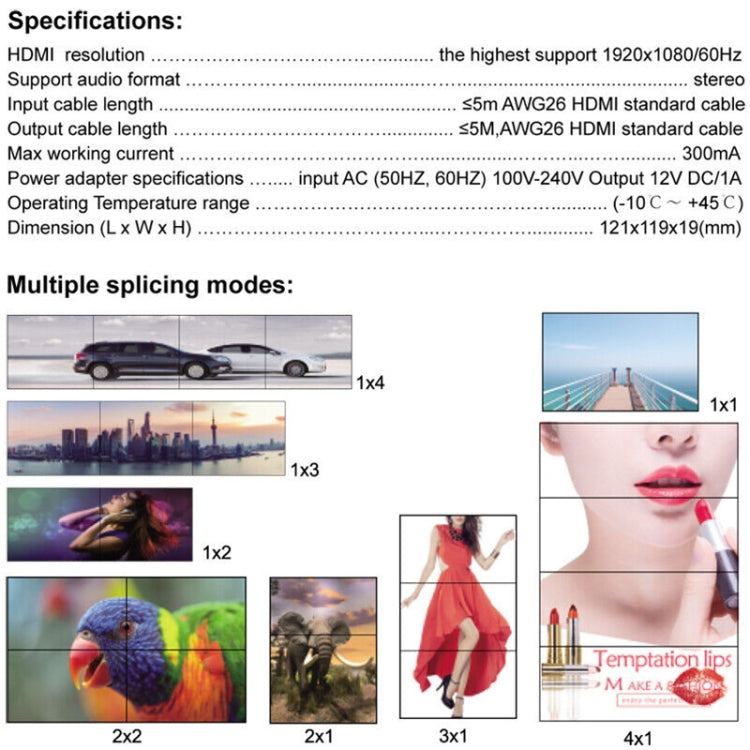

Specifications: 1. HDMI resolution: support 1920x1080/60Hz 2. Audio format: stereo 3. Input cable length: greater than or equal to 5 meters AWG26 HDMI standard cable 4. Output cable length: greater than or equal to 5 meters AWG26 HDMI standard cable 5. Working current: 300mA (max) 6. Power adapter specifications: input: AC (50Hz, 60Hz) 100V-240V, output: DC12V/1A 7. Operating temperature range: 0-45 degrees Celsius 8. Size: 121x119x19mm 9. Net weight: 228g
Packing list: 2x2 splicer x 1 Power adapter x 1 Remote control x 1 RS232 serial line x 1 User manual x 1
