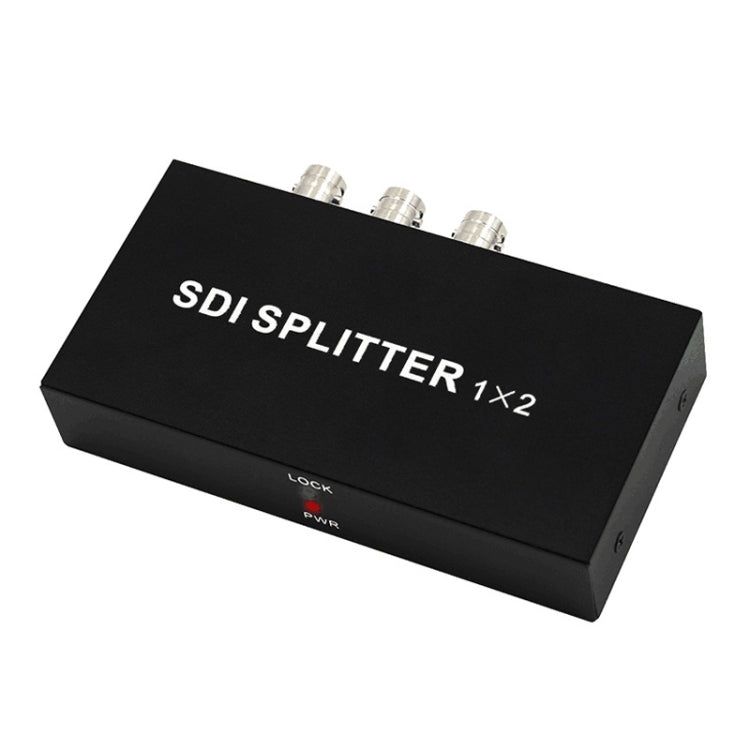

1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter(US Plug)
1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter(US Plug)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. SDI output interface: BNC SDI×2 SDI×4 SDI×8
2. SDI standard compatible: SMPTE 424M, SMPTE 292M and SMPTE 259M-C
3. SDI signal format: SD-SDI HD-SDI 3G-SDI
4. Support SDI rate: 143-2970MB/S
5. SDI impedance: 75 ohms
6. Resolution: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60HZ / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI signal output amplitude: 800mVp-p

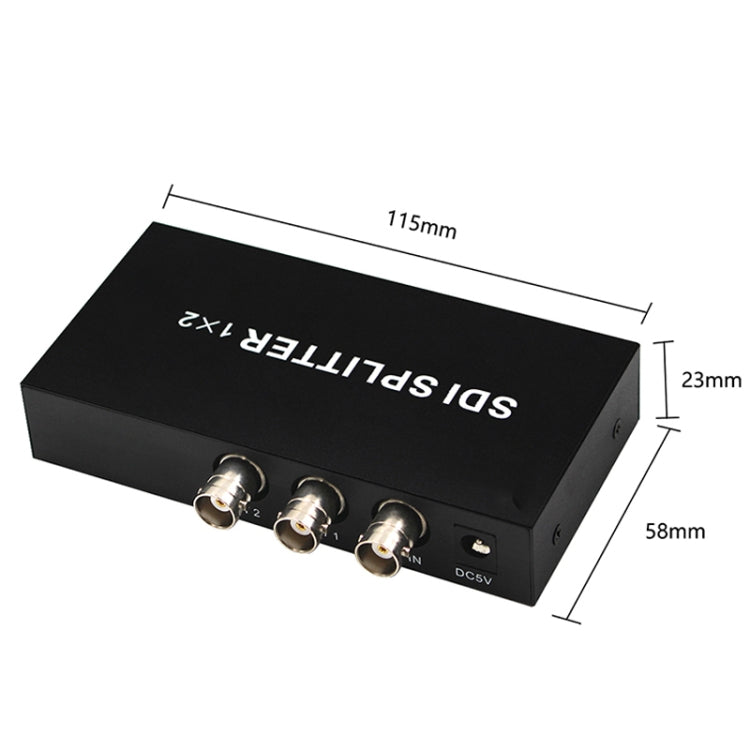

8. Dimensions: 115 x 58 x 23mm

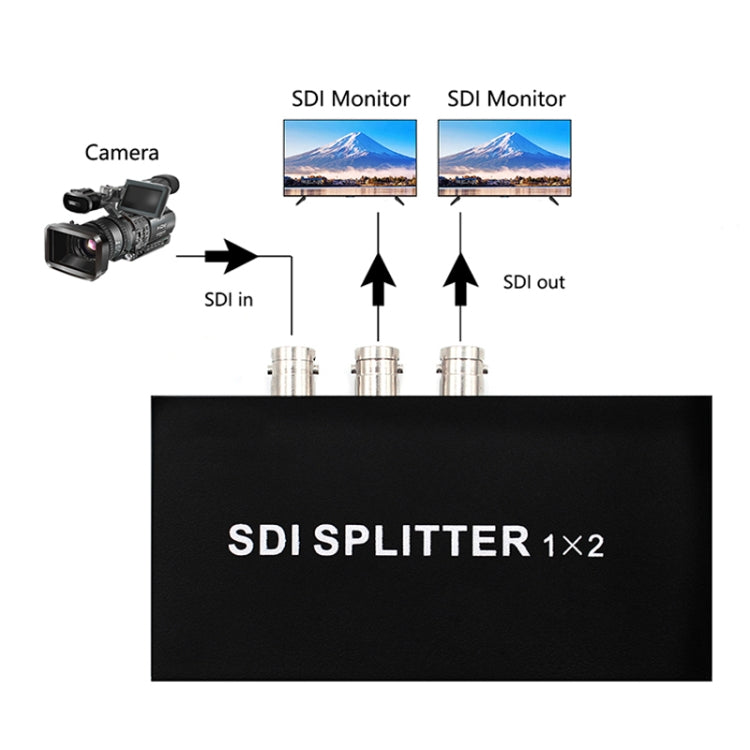

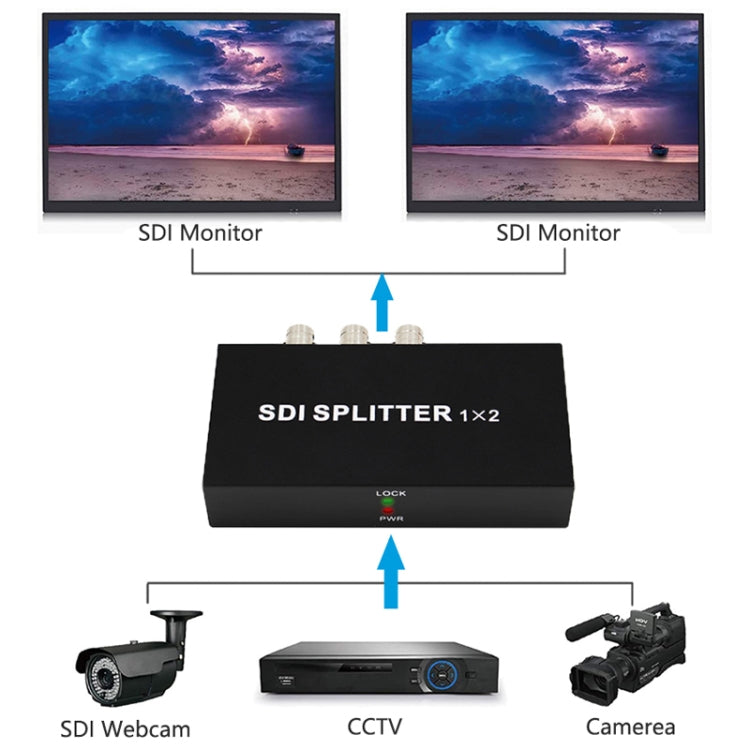

Installation steps:
1. Connect the SDI input interface to the SDI signal source through the coaxial cable
2. SDI output can be connected to other display devices that support SDI signal input
3. Turn on the power of the host, and the machine starts to work
Function description:
1. SDI distribution function: Connect the hardware according to the three "installation steps", and the SDI splitter will start to work normally. The SDI splitter supports SD-SDI (270Mbps), high-definition HD-SDI (1.485Gbps) and full high-definition 3G-SDI (2.97 Gbps) video format, SDI video distribution
2. Extension function: This product supports cable length up to (Belden-1694A); SDI line input and output distance: SD supports 400m, HD supports 200m, 3G supports 100m (theoretical value, the specific distance is related to the quality of the cable)
3. Wide voltage design: built-in wide voltage design, support DC5V~36V voltage input (power up to 2W)

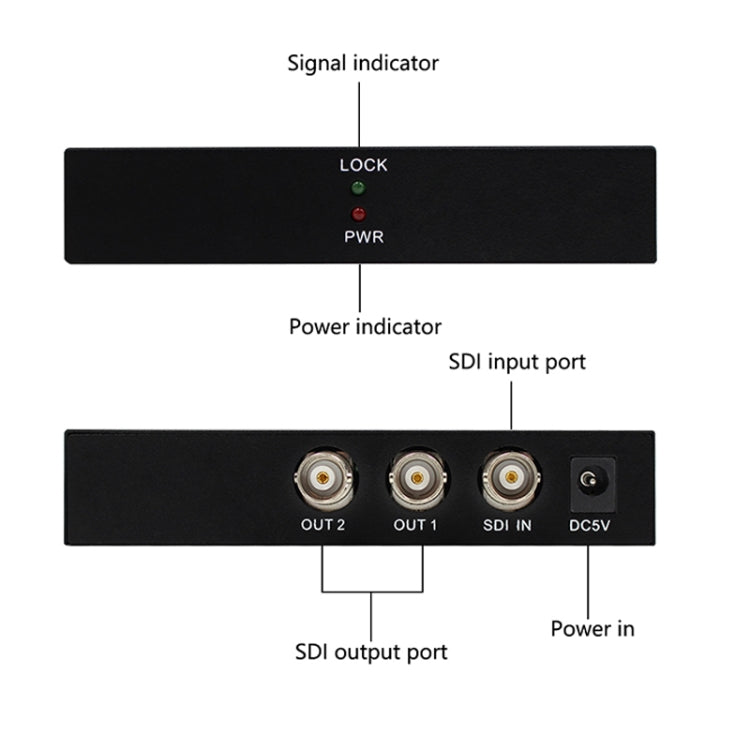

4. Intelligent design: It adopts pure hardware processing to plug and play, and can automatically detect different SDI signals. When a valid SDI signal is input, the LED indicator will display green. If there is no signal or the signal is not consistent with the standard LED indicator will be will go out, making it easier for engineering customers to judge the problem
