Master Automotive Electronics Installation for Your Vehicle

Installing automotive electronics might sound as simple as swapping out a few wires. Yet, professional technicians depend on over ten different specialised tools for even the most routine job. Most people rush into an upgrade without realising that skipping even one safety step can damage thousands of pounds worth of components. Careful preparation is the hidden difference between a botched DIY nightmare and a flawless electronics installation that lasts.

Table of Contents

• Step 1: Gather Essential Tools And Equipment
• Step 2: Disconnect Vehicle Battery For Safety
• Step 3: Remove Existing Electronics Components
• Step 4: Install New Automotive Electronics Properly
• Step 5: Reconnect Battery And Test The Installation
• Step 6: Verify Functionality And Ensure Quality

Quick Summary

Step 1: Gather Essential Tools and Equipment

Successful automotive electronics installation begins with meticulous preparation and selecting the right tools. Before diving into complex wiring and component placement, you will need a comprehensive toolkit designed specifically for automotive electronic modifications. Professional technicians understand that quality tools are the foundation of precision work.

Your essential toolkit should include precision electrical tools that ensure safe and accurate installation. Start with a professional multimeter capable of measuring voltage, current, and resistance in automotive electrical systems. You will need wire strippers with multiple gauge settings, allowing clean and precise cable preparation. Invest in high quality crimping tools that provide secure electrical connections without damaging delicate wires.

Additional critical tools include digital voltage testers, heat shrink tubing, electrical tape, cable ties, and a reliable soldering iron with adjustable temperature controls. Choose professional grade wire cutters designed for automotive applications, which provide clean cuts through various wire thicknesses. Protective equipment is non negotiable: safety glasses, insulated gloves, and an anti static wrist strap will protect both you and sensitive electronic components.

Before beginning any automotive electronics installation, create a clean workspace with proper lighting and organisation. Lay out your tools systematically and ensure you have spare fuses, connectors, and backup components. If you want to learn more about professional repair tools, our comprehensive guide offers additional insights into selecting quality equipment.

Verify your toolkit includes these essential items:

• Multimeter with automotive testing capabilities
• Professional grade wire strippers
• Precision crimping tools
• Digital voltage tester
• Heat shrink tubing kit
• High quality electrical tape
• Professional soldering iron
• Safety glasses and insulated gloves

By meticulously preparing your workspace and gathering the right tools, you establish the groundwork for a successful automotive electronics installation project.

The following table summarises the essential tools and equipment required for a professional automotive electronics installation, along with their primary purpose and recommended specification for optimal results.

Step 2: Disconnect Vehicle Battery for Safety

Before diving into automotive electronics installation, disconnecting your vehicle battery is a critical safety procedure that protects both you and your vehicle’s electrical systems. Working with live electrical circuits can result in severe personal injury or permanent damage to expensive automotive components. Proper battery disconnection is not optional but essential.

Begin by locating your vehicle’s battery, typically found under the bonnet in a designated compartment. Modern vehicles have different battery placements, so consult your vehicle’s manual if you are uncertain. Once located, ensure you are wearing insulated gloves and have your safety glasses on. Always approach battery disconnection methodically and calmly.

Using a properly sized wrench, first loosen and remove the negative battery terminal marked with a minus (-) symbol or black colour. This terminal is crucial as disconnecting it breaks the electrical circuit and minimises risk of short circuits or accidental electrical discharge. Gently wiggle the terminal connection to ensure complete disconnection, being careful not to touch metal tools against the battery or surrounding metal surfaces.

After removing the negative terminal, carefully tuck the cable away from the battery area to prevent accidental reconnection. Learn more about battery replacement techniques that can help you understand electrical safety principles. Some vehicles might require additional steps depending on their specific electrical configuration.

Verify battery disconnection by checking these key indicators:

• Terminal cables are completely separated from battery posts
• No visible electrical connection between battery and vehicle systems
• Battery area is clear of metal tools and potential short circuit sources
• Insulated gloves remain on throughout the process

Professional technicians recommend taking a moment to visually inspect the battery for any signs of corrosion, damage, or wear before proceeding with your automotive electronics installation.

By following these careful steps, you establish a safe working environment for your technical project.

Step 3: Remove Existing Electronics Components

Removing existing electronics components requires precision, patience, and a systematic approach. This critical step sets the foundation for successful automotive electronics installation by creating a clean workspace and understanding your vehicle’s current configuration. Professional technicians know that careful component removal prevents potential damage and ensures smoother replacement processes.

Start by carefully documenting your existing electronic setup. Take clear photographs or create detailed sketches showing wire connections, mounting positions, and component placements. This documentation will serve as a valuable reference during reinstallation. Use a digital camera or smartphone to capture multiple angles, ensuring you have comprehensive visual records of the original configuration.

Begin component removal by locating and gently disconnecting electrical connections. Use your electrical pliers or dedicated electronics removal tools to carefully extract connectors without applying excessive force. Pay special attention to fragile wiring harnesses and delicate connection points. Some automotive electronics might have specific release mechanisms or locking tabs that require careful manipulation. Examine each connection methodically, understanding how different components are integrated into the vehicle’s electrical system.

Learn more about responsible electronics disposal to ensure environmentally conscious practices during your automotive electronics upgrade. When removing components, place them on a clean, static free surface to prevent potential damage. Organize removed parts systematically, grouping similar items together and labelling them if necessary.

Verify component removal by checking these critical indicators:

• All electrical connections are safely disconnected
• Mounting points are clear and undamaged
• Wiring harnesses are carefully preserved
• Removed components are catalogued and protected
• Original system documentation is complete

Remember that each vehicle model has unique electronic configurations. What works for one might require slight modifications for another. Take your time, remain methodical, and prioritise careful, deliberate actions throughout the component removal process.

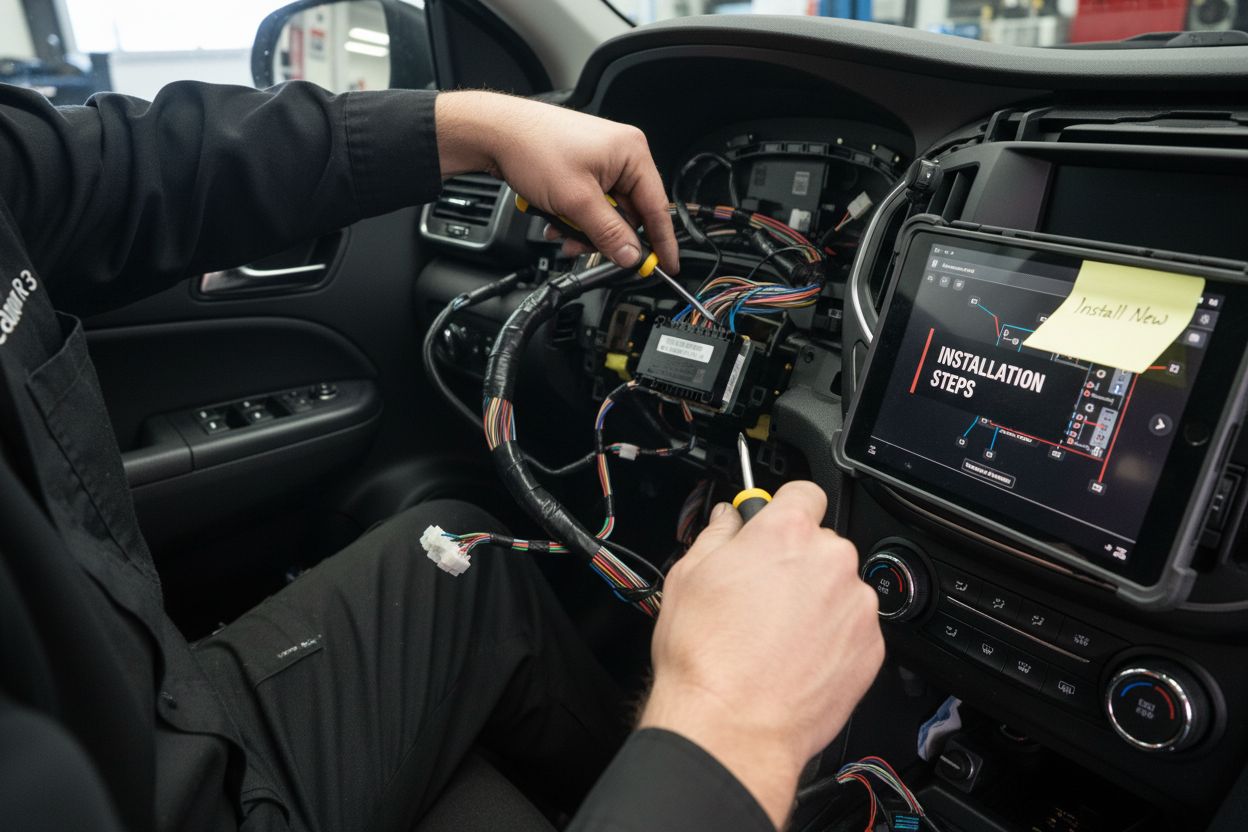

Step 4: Install New Automotive Electronics Properly

Installing new automotive electronics demands precision, attention to detail, and a systematic approach that minimises potential electrical complications. Proper installation is the critical bridge between component selection and functional performance. Begin by carefully comparing your new electronics with the original system documentation and photographs you created during component removal.

Position the new electronic components exactly matching the original mounting locations. Use precision tools to align mounting brackets, ensuring they are level and securely fastened. Apply anti vibration washers or rubber grommets where appropriate to reduce potential mechanical stress during vehicle operation. Professional technicians understand that mechanical stability is as important as electrical connectivity.

Proceed with electrical connections methodically, matching wire colours and connector types from your original documentation. Use heat shrink tubing to professionally insulate each connection, preventing potential short circuits. Understand proper electronics handling techniques to maintain component integrity throughout the installation process. When connecting wiring harnesses, ensure firm but gentle pressure to create secure electrical contacts without damaging delicate pins or connectors.

According to automotive engineering standards, proper wiring insulation prevents electrical failures and ensures long term reliability of automotive electronic systems. Apply electrical tape strategically to bundle and protect wire clusters, reducing potential interference and maintaining a clean installation appearance.

Verify new electronics installation by checking these critical indicators:

• All mounting points are secure and level
• Electrical connections match original system configuration
• Wire connections are properly insulated
• No exposed electrical contacts or loose connections
• Components are mechanically stable and vibration resistant

Remember that patience and methodical work are your greatest assets during automotive electronics installation. Take time to double check each connection and ensure everything is positioned correctly before proceeding to final system testing.

Step 5: Reconnect Battery and Test the Installation

Reconnecting your vehicle’s battery and conducting a comprehensive system test represents the critical final stage of automotive electronics installation. This step transforms your careful preparation and meticulous work into a functional reality. Professional technicians understand that thorough testing is not optional but essential for ensuring long term performance and reliability.

Begin by carefully repositioning the negative battery terminal, ensuring a clean and secure connection. Use your torque wrench to tighten the terminal bolt to manufacturer specifications, avoiding over tightening which could damage the battery post or connection point.

Gently wiggle the terminal to confirm a solid electrical connection that will provide consistent power to your newly installed electronic components.

With the battery reconnected, systematically power up and test each newly installed electronic system. Start the vehicle and observe the dashboard for any warning lights or unusual indicators. Pay close attention to the performance of your new electronics, noting any unexpected behaviours or performance deviations. Use your multimeter to verify voltage levels and electrical system stability across different operational scenarios.

Learn more about electronic system diagnostics to understand comprehensive testing methodologies. Conduct multiple test cycles under different conditions: engine idle, acceleration, and various electrical load scenarios. This approach helps identify potential intermittent issues that might not be immediately apparent during initial testing.

Verify successful battery reconnection and system performance by checking these critical indicators:

• Battery terminal is securely fastened
• No dashboard warning lights are illuminated
• All new electronic components function correctly
• Electrical system voltage remains stable
• No unusual sounds or performance irregularities detected

Remember that successful automotive electronics installation requires patience and methodical verification.

This table provides a checklist to verify successful completion of the battery reconnection and installation testing phase, helping ensure all safety and performance criteria are met before proceeding.

Step 6: Verify Functionality and Ensure Quality

Verifying functionality represents the culmination of your automotive electronics installation journey, transforming technical work into reliable performance. Professional technicians understand that comprehensive quality assurance goes beyond basic operational tests. This critical step demands meticulous attention to detail and systematic evaluation of every installed electronic component.

Begin by conducting a comprehensive diagnostic scan using an automotive diagnostic tool. These sophisticated devices can read and interpret error codes, providing insight into potential installation issues that might not be immediately visible. Connect the diagnostic tool to your vehicle’s onboard computer system and carefully review all generated reports. Look for any unexpected error codes or system warnings that could indicate misalignment or improper installation.

Proceed with real world performance testing across various driving conditions. Test each installed electronic component through multiple operational scenarios: city driving, highway speeds, and different environmental conditions. Pay particular attention to signal transmission, electrical stability, and overall system integration. Explore advanced diagnostic techniques to understand comprehensive quality verification processes that professionals employ in automotive electronics installations.

Document your findings meticulously, creating a detailed record of system performance. Take notes on electrical voltage readings, component responsiveness, and any subtle variations in system behavior. This documentation serves as valuable reference material and can help troubleshoot potential future issues.

Verify installation quality by checking these critical indicators:

• No active error codes in diagnostic system
• Consistent electrical performance across different conditions
• All installed components functioning as expected
• No abnormal sounds or unexpected system behaviors
• Electrical system voltage remains stable

Remember that quality verification is an ongoing process. Plan to monitor your newly installed automotive electronics over the next few weeks, noting any changes or performance variations. Your thorough approach ensures a reliable, professionally installed electronic system that meets the highest standards of automotive technology.

Upgrade Your Automotive Electronics with Trusted Parts and Expert Support

You have just learned the essential steps to master automotive electronics installation, from preparing your toolkit to conducting the final quality checks. Yet, many readers face a common challenge: finding high-quality replacement parts and specialist accessories that guarantee both reliability and easy integration with their vehicle systems. This problem can be daunting, especially when precision tools, trustworthy parts, and expert insight are critical for a successful installation.

At Buy2fix, we bridge the gap between your installation goals and the solutions you need. Our extensive selection of automotive electronics and repair components ensures you never have to compromise on quality or compatibility. Whether you are searching for secure connectors, professional-grade tools, or car MP3 players, we supply only thoroughly tested products backed by a one-year warranty and a 30-day return policy. With comprehensive quality control and stock sourced directly from partner warehouses, you can tackle any installation project with confidence.

Take your automotive electronics upgrade to the next level. Visit Buy2fix today to find everything you need in one place and experience hassle-free delivery and full consumer rights protection. Do not delay – the right part and the right support can make all the difference in your next project.

Frequently Asked Questions

How can I master automotive electronics installation for my vehicle?

To master automotive electronics installation, start by thoroughly preparing your toolkit and workspace. Follow each step meticulously, from disconnecting the battery to testing the final installation, ensuring you document every process for future reference.

What tools do I need for automotive electronics installation?

Essential tools for automotive electronics installation include a professional multimeter, wire strippers, precision crimping tools, and a reliable soldering iron. Assemble these tools in a clean, organized workspace to facilitate a smooth installation process.

How do I ensure safety while installing automotive electronics?

To ensure safety during installation, always disconnect the vehicle battery before starting work. Wear insulated gloves and safety glasses at all times to protect yourself from electrical hazards and potential injuries.

What steps should I follow to remove existing electronic components?

When removing existing electronic components, document your setup with photographs and carefully disconnect wires using dedicated tools. Handle fragile wiring harnesses with caution and keep all removed parts organized for easy reinstallation.

How do I verify the functionality of new automotive electronics after installation?

Verify the functionality by reconnecting the battery and conducting a comprehensive system test with your vehicle running. Check for any warning lights, conduct performance tests across various conditions, and take note of electrical readings to ensure optimal performance.

What should I do if I encounter issues during the installation process?

If you encounter issues during installation, retrace your steps methodically to identify potential mistakes. Document your findings, adjust as necessary, and retest the installation to find and resolve any problems for optimal functionality.
