The Galaxy S23 charging port is one of the most frequently misdiagnosed repairs in the shop. Customers bring in a phone that won't charge, assume the port is damaged, and expect a straightforward swap. In our experience, the port itself is the actual problem in fewer than half of those cases.
Replacing the charging board on a Galaxy S23 without ruling out other causes first costs your customer money and your shop credibility when the problem persists. This guide walks through the diagnostic sequence we use before picking up a heat gun.
Why S23 Charging Failures Are Frequently Misdiagnosed
The Galaxy S23 uses a combined USB-C charging port and flex cable assembly (the "tail connector" or charging board). When charging stops working, there are four plausible failure points — and only one of them is the port itself:
-
The port — physically damaged pins, bent contacts, or debris obstruction
-
The charging cable or adapter — this eliminates more than 20% of "faulty port" cases immediately
-
The battery — a failed or deeply discharged battery won't charge regardless of port condition
-
The charging IC on the motherboard — less common but not rare, and replacing the port won't fix it
Running through these in order takes less time than a port swap and results in the right repair every time.
Step 1: Rule Out the Cable and Adapter (5 Minutes)

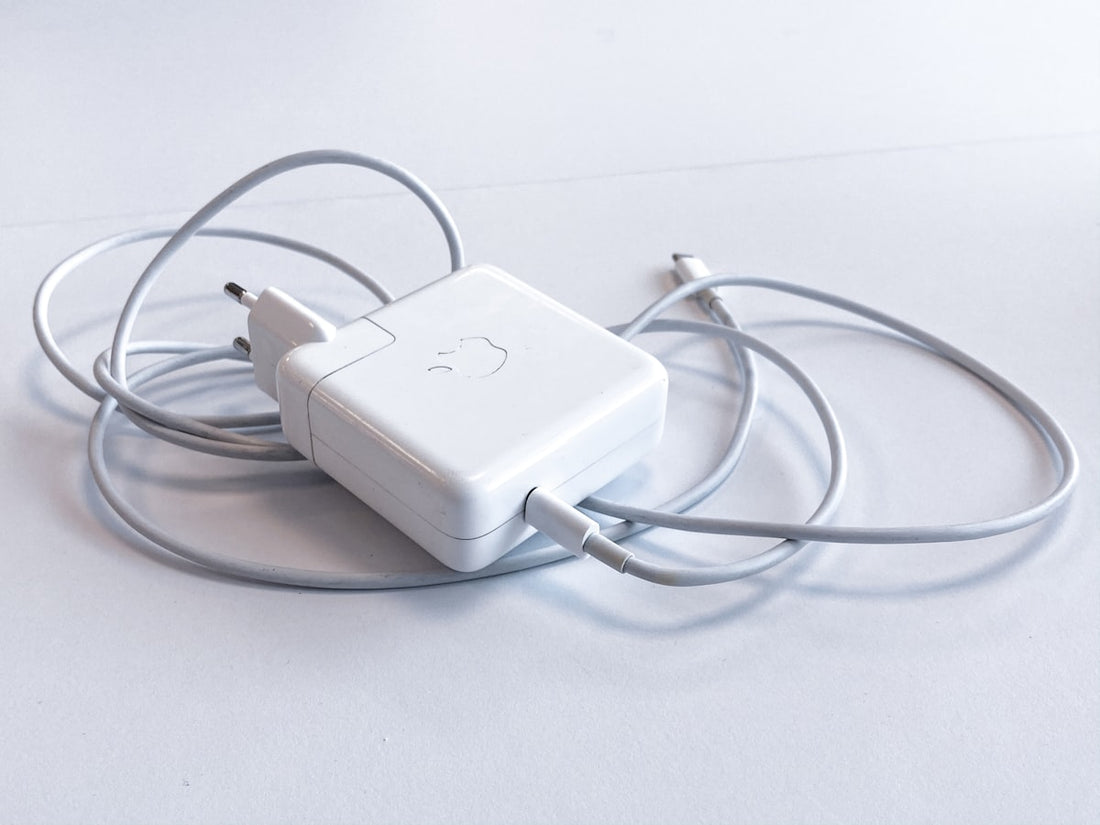

Before touching the device, test with a known-good cable and a different charger block. Use a charger you've personally verified works on another S23 or S-series device — not the customer's own cable, which may be the problem.
If the device charges with a different cable, the job is done and the customer needs a new cable. If it doesn't, move to Step 2.
Also check: wireless charging. If the device charges wirelessly but not via USB-C, the port is almost certainly the issue (or debris — see Step 3). If it won't charge either way, the battery or charging IC is the more likely culprit.
Step 2: Visual and Physical Port Inspection
Power off the device and examine the USB-C port under magnification (a 10x loupe or USB microscope). Look for:
-
Bent or missing pins inside the port — USB-C has 24 pins; any bent inward will interrupt charging
-
Corrosion — appears as dark discolouration or white residue on the pins, common after liquid exposure
-
Debris — pocket lint compacts tightly into USB-C ports and prevents the cable from seating fully; this is more common than most technicians expect
For debris: use a non-metallic pick (a toothpick works well) to gently dislodge compacted lint from the rear of the port cavity. Do not use metal tools — a screwdriver will bend pins. After clearing, test charging before proceeding.
Lint obstruction is the cause in approximately 15–20% of "won't charge" Galaxy S23 cases. Takes 30 seconds to check and saves an unnecessary repair.
Step 3: Battery Voltage Test
If the port looks clean and charging still fails, test battery voltage with a multimeter before assuming the port is faulty. A deeply discharged Galaxy S23 battery (below ~3.0V) will refuse to charge through standard means — the battery protection circuit cuts off the charge path.
Connect the multimeter to the battery terminals (requires partial disassembly — remove the back cover). A healthy S23 battery should read between 3.5V (discharged) and 4.35V (full). Below 3.0V indicates a failed or deeply discharged cell.
If battery voltage is within normal range and the device still won't charge via USB-C, the port or the charging IC becomes the most likely fault.
Step 4: Port vs. Charging IC — The Definitive Test
The practical test: use a USB-C breakout board or USB power meter to confirm whether the port is accepting a connection at all. If the meter shows power negotiation is occurring, the fault is likely the charging IC — a motherboard-level repair. If no connection is registered, replace the charging port/board.
Replacing the Galaxy S23 Charging Port Board
The S23 uses a flexible charging board, not a rigid module. It routes along the bottom of the device and connects via ZIF connectors. The board also carries the microphone and speaker connections on most variants.
Heat is required. Heat the back panel to 70–80°C before attempting removal. Work slowly from one corner — the back glass is thin and cracks easily if pried without adequate heat.
Remove the battery before disconnecting the charging board. On the S23, the battery sits in the lower section of the device and must come out before you can safely access the charging board connectors.
Cable routing matters. When fitting the new board, ensure the flex cable follows exactly the same routing path as the original. Pinched or misrouted flex cables create intermittent charging failures post-repair.
Compatible Galaxy S23 Parts at Buy2fix
For charging port boards and related components, browse our Samsung Galaxy compatible parts. We also stock the adhesive strips needed for back glass resealing after this repair.
For broader S23 repair work:
- Galaxy S23 5G parts
- Galaxy S23+ 5G parts
- Galaxy S23 Ultra 5G parts
This diagnostic sequence is based on real-world repair patterns from the Buy2fix technical team. The most expensive repair is the one that doesn't fix the problem — diagnose first.
